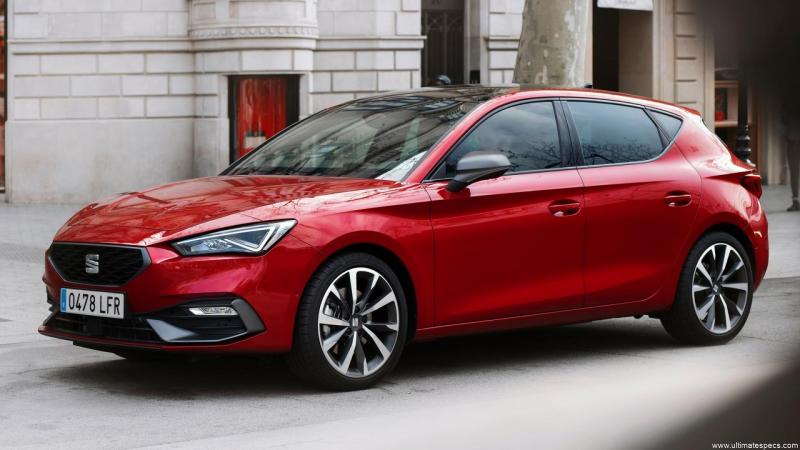

Seat Leon 4 1.5 TSI 150HP FR Specs

(2025 - ) - Technical Specifications for 2025

Petrol

1498 cm³
91.4 cu-in

Inline 4

150 PS
148 HP / 110 kW

250 Nm
184 lb-ft

217 km/h
135 Mph

5.6 L/100 km
50 MPG UK
42 MPG US

Seat Leon 4 1.5 TSI 150HP FR Body, Model and Production details

Generation :	Leon 4 (KL)

Body :	Hatchback

Num. of Doors :	5 doors


Seat Leon 4 1.5 TSI 150HP FR Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	VW EA211 Evo DXDB-Evo2

Fuel type :	Petrol

Fuel System :	Direct Injection

Lubrication :	See oil information Seat Leon 4 1.5 TSI 150HP FR Oil Specifications - Engine oil All Weather: 0W20 OEM: VW 508.00 Engine oil capacity (with filter): 4.3 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	1498 cm³ / 91.4 cu-in

Bore x Stroke :	74.5 x 85.9 mm 2.93 x 3.38 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	10.5

Horsepower :	150 PS / 148 HP / 110 kW @ 5000-6000 rpm

Maximum torque :	250 Nm / 184 lb-ft @ 1500-3500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Seat Leon 4 1.5 TSI 150HP FR Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined WLTP:	5.6 L/100 km 50 MPG UK 42 MPG US

Range (WLTP):	803 km / 499 miles

Fuel Tank Capacity :	45 L 11.9 US gallons 9.9 UK gallons

CO2 emissions WLTP :	126 g/km (Seat)

Emission standard :	Euro 6E

Catalytic converter :	Particle Filter

Seat Leon 4 1.5 TSI 150HP FR Performance

Top Speed :	217 km/h / 135 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	8.7 s


Seat Leon 4 1.5 TSI 150HP FR Size, Dimensions, Aerodynamics and Weight

Wheelbase :	268.4 cm / 105.67 inches

Length :	436.8 cm / 171.97 inches

Width :	179.9 cm / 70.83 inches

Width with mirrors :	199.1 cm / 78.39 inches

Height :	144.2 cm / 56.77 inches

Front Axle :	153.4 cm / 60.39 inches

Rear Axle :	151.6 cm / 59.69 inches

Max. Towing Capacity Weight :	1500 kg / 3307 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1349 kg / 2974 lbs

Weight/Power Output Ratio :	9 kg/hp


Seat Leon 4 1.5 TSI 150HP FR Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	380 L / 13.4 cu-ft

Trunk / Boot First Row :	1301 L / 45.9 cu-ft


Seat Leon 4 1.5 TSI 150HP FR Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (288 mm / 11.34 inches)

Rear Brakes - Disc dimensions :	Discs (272 mm / 10.71 inches)

Front Tyres - Rims dimensions :	225/40 R18

Rear Tyres - Rims dimensions :	225/40 R18

Turning circle :	11.2 m / 36.7 feet

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Multi-link. Coil Springs. Anti-roll bar.
