Jumper 2024 L3H2 Versions

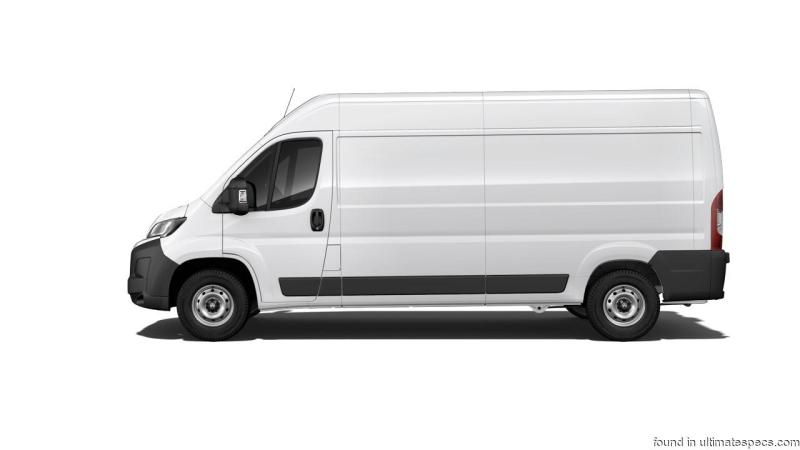

Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Specs

(2024 - ) - Technical Specifications for Years 2024, 2025

Diesel

2184 cm³
133.3 cu-in

Inline 4

120 PS
118 HP / 88 kW

320 Nm
236 lb-ft

148 km/h
92 Mph

7.6 L/100 km
37 MPG UK
31 MPG US

Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Body, Model and Production details

Generation :	Jumper 2 - 2024 Update

Body :	Van

Num. of Doors :	4 doors


Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	Fiat 2.2 Multijet3 4H03 - Euro6d

Fuel type :	Diesel

Fuel System :	Common Rail

Lubrication :	See oil information Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Oil Specifications - Engine oil All Weather: 0W30 OEM: Fiat 9.55535-DS1 API/ACEA: ACEA C2 Engine oil capacity (with filter): 6.2 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	2184 cm³ / 133.3 cu-in

Bore x Stroke :	83.8 x 99 mm 3.3 x 3.9 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	15.5

Horsepower :	120 PS / 118 HP / 88 kW @ 3500 rpm

Maximum torque :	320 Nm / 236 lb-ft @ 1400-2500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined WLTP:	7.6 L/100 km 37 MPG UK 31 MPG US

Range (WLTP):	1184 km / 736 miles

Fuel Tank Capacity :	90 L 23.8 US gallons 19.8 UK gallons

AdBlue Tank :	19 L 5 US gallons 4.2 UK gallons

CO2 emissions WLTP :	200 g/km (Citroen)

Catalytic converter :	Particle Filter (with SCR cat.)

Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Performance

Top Speed :	148 km/h / 92 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	403.5 cm / 158.86 inches

Length :	599.8 cm / 236.14 inches

Width :	205.0 cm / 80.71 inches

Width with mirrors :	248.5 cm / 97.83 inches

Height :	252.4 cm / 99.37 inches

Front Axle :	181.0 cm / 71.26 inches

Rear Axle :	179.0 cm / 70.47 inches

Cargo box inside length :	370.5 cm / 145.87 inches

Cargo box inside height :	193.2 cm / 76.06 inches

Cargo width :	187.0 cm / 73.62 inches

Max. width at wheelhouse :	142.2 cm / 55.98 inches

Rear door width :	156.2 cm / 61.5 inches

Rear door height :	179.0 cm / 70.47 inches

Side door width :	125.0 cm / 49.21 inches

Side door height :	175.5 cm / 69.09 inches

Max. Towing Capacity Weight :	2500 kg / 5512 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2150 kg / 4740 lbs

Weight/Power Output Ratio :	17.9 kg/hp


Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Interior size, Dimensions

Num. of Seats :	3 seats

Trunk / Boot capacity :	13000 L / 459.1 cu-ft

Trunk / Boot First Row :	13000 L / 459.1 cu-ft


Citroen Jumper 2024 L3H2 33 2.2 BlueHDi 120 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Discs (- mm / - inches)

Front Tyres - Rims dimensions :	215/70 R15

Rear Tyres - Rims dimensions :	215/70 R15

Turning circle :	14.3 m / 46.9 feet

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Torsion Bar. Leaf Springs.
