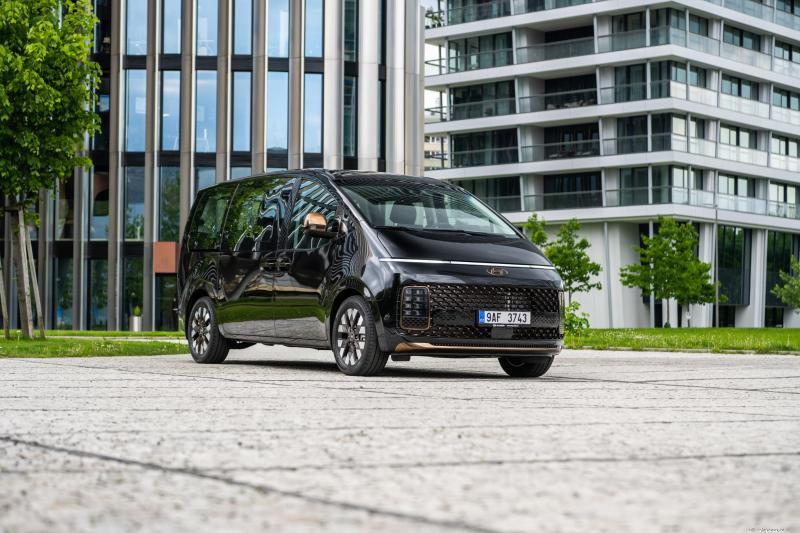

Hyundai Staria 2.2 CRDi AWD Automatic Specs

(2021 - ) - Technical Specifications for Years 2021, 2022, 2023, 2024, 2025

Key Specs

Diesel

2199 cm³
134.2 cu-in

Inline 4

177 PS
175 HP / 130 kW

430 Nm
317 lb-ft

180 km/h
112 Mph

8.9 L/100 km
32 MPG UK
26 MPG US

Compare with another car

More pictures

Hyundai Staria 2.2 CRDi AWD Automatic Body, Model and Production details

Body :	Minivan

Num. of Doors :	5 doors


Hyundai Staria 2.2 CRDi AWD Automatic Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	D4HB

Fuel type :	Diesel

Fuel System :	Common Rail

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	2199 cm³ / 134.2 cu-in

Bore x Stroke :	85.4 x 96.0 mm 3.36 x 3.78 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Horsepower :	177 PS / 175 HP / 130 kW @ 3800 rpm

Maximum torque :	430 Nm / 317 lb-ft @ 1500-2500 rpm

Drive wheels - Traction - Drivetrain :	AWD

Transmission Gearbox - Number of speeds :	8 speed Automatic


Hyundai Staria 2.2 CRDi AWD Automatic Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP:	12.1 L/100 km 23 MPG UK 19 MPG US

Fuel Consumption - Economy - Medium WLTP:	9 L/100 km 31 MPG UK 26 MPG US

Fuel Consumption - Economy - High WLTP:	7.4 L/100 km 38 MPG UK 32 MPG US

Fuel Consumption - Economy - Extra high WLTP:	8.8 L/100 km 32 MPG UK 27 MPG US

Fuel Consumption - Economy - Combined WLTP:	8.9 L/100 km 32 MPG UK 26 MPG US

Range (WLTP):	842 km / 523 miles

Fuel Tank Capacity :	75 L 19.8 US gallons 16.5 UK gallons

CO2 emissions WLTP :	232 g/km (Hyundai)

Emission standard :	Euro 6d - WLTP

Catalytic converter :	Particle Filter (with SCR cat. and NOx adsorber cat.)

Hyundai Staria 2.2 CRDi AWD Automatic Performance

Top Speed :	180 km/h / 112 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	13.5 s


Hyundai Staria 2.2 CRDi AWD Automatic Size, Dimensions, Aerodynamics and Weight

Wheelbase :	327.3 cm / 128.86 inches

Length :	525.3 cm / 206.81 inches

Width :	199.7 cm / 78.62 inches

Height :	199.0 cm / 78.35 inches

Front Axle :	172.1 cm / 67.76 inches

Rear Axle :	173.2 cm / 68.19 inches

Ground clearance :	18.6 cm / 7.32 inches

Max. Towing Capacity Weight :	1500 kg / 3307 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2443 kg / 5386 lbs

Weight/Power Output Ratio :	13.8 kg/hp


Hyundai Staria 2.2 CRDi AWD Automatic Interior size, Dimensions

Num. of Seats :	9 seats

Trunk / Boot capacity :	831 L / 29.3 cu-ft

Trunk / Boot First Row :	1303 L / 46 cu-ft


Hyundai Staria 2.2 CRDi AWD Automatic Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Front Tyres - Rims dimensions :	215/65 R17

Rear Tyres - Rims dimensions :	215/65 R17

Turning circle :	11.9 m / 39 feet

Front Suspension :	Independent. MacPherson. Coil Springs.

Rear Suspension :	Multi-link. Coil Springs.

What engine is in Hyundai Staria 2.2 CRDi AWD Automatic?
The Hyundai Staria 2.2 CRDi AWD Automatic has a Inline 4, Diesel engine with 2199 cm³ / 134.2 cu-in capacity.

How many horsepower (hp) does a 2021 Hyundai Staria 2.2 CRDi AWD Automatic have?
The 2021 Hyundai Staria 2.2 CRDi AWD Automatic has 177 PS / 175 bhp / 130 kW.

How much does a Hyundai Staria 2.2 CRDi AWD Automatic weighs?
The Hyundai Staria 2.2 CRDi AWD Automatic weighs 2443 Kg / 5386 lbs.

What is the top speed of a Hyundai Staria 2.2 CRDi AWD Automatic?
The Hyundai Staria 2.2 CRDi AWD Automatic top speed is 180 Km/h / 112 mph.

Is Hyundai Staria 2.2 CRDi AWD Automatic All Wheel Drive (AWD)?
Yes, the Hyundai Staria 2.2 CRDi AWD Automatic is All Wheel Drive (AWD).

How fast is a Hyundai Staria 2.2 CRDi AWD Automatic?
The Hyundai Staria 2.2 CRDi AWD Automatic can reach 0 to 100 km/h (0 to 62 mph) in 13.5 seconds and has a top speed of 180 km/h.
