Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Specs

(2024 - ) - Technical Specifications for Years 2024, 2025

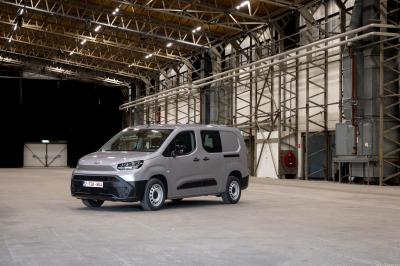

Toyota Proace Max L4H2 image

Key Specs

Diesel
2184 cm3
133.3 cu-in
Inline 4
180 PS
178 HP / 132 kW
450 Nm
331 lb-ft
8.7 L/100 km
32 MPG UK
27 MPG US

Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Body, Model and Production details Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Body, Model and Production details

Generation : Proace Max I - 2024 New Model
Body : Van
Num. of Doors : 4 doors

Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Engine Technical Data Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Engine Technical Data

Engine type - Number of cylinders : Inline 4
Engine Code : Fiat 2.2 Multijet3 46348913 - Euro6d
Fuel type : Diesel
Fuel System : Common Rail
Lubrication :
Engine Alignment : Transverse
Engine Position : Front
Engine displacement : 2184 cm3 / 133.3 cu-in
Bore x Stroke : 83.8 x 99 mm
3.3 x 3.9 inches
Number of valves : 16 Valves
Aspiration : Turbo Intercooler
Compression Ratio : 15.5
Horsepower : 180 PS / 178 HP / 132 kW
@ 3500 rpm
Maximum torque : 450 Nm / 331 lb-ft
@ 1500-1750 rpm
Drive wheels - Traction - Drivetrain : FWD
Transmission Gearbox - Number of speeds :

Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Fuel Consumption (Economy), Emissions and Range Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP: 9.9 L/100 km
29 MPG UK
24 MPG US
Fuel Consumption - Economy - Medium WLTP: 7.6 L/100 km
37 MPG UK
31 MPG US
Fuel Consumption - Economy - High WLTP: 7.2 L/100 km
39 MPG UK
33 MPG US
Fuel Consumption - Economy - Extra high WLTP: 10.1 L/100 km
28 MPG UK
23 MPG US
Fuel Consumption - Economy - Combined WLTP: 8.7 L/100 km
32 MPG UK
27 MPG US
Range (WLTP): 793 km / 493 miles
Fuel Tank Capacity : 69 L
18.2 US gallons
15.2 UK gallons
AdBlue Tank : 22 L
5.8 US gallons
4.8 UK gallons
CO2 emissions WLTP : 229 g/km (Toyota)
Catalytic converter : Particle Filter (with SCR cat.)

Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Performance Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Performance

Top Speed : - km/h / - Mph
Acceleration 0 to 100 km/h (0 to 62 mph) : - s

Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Size, Dimensions, Aerodynamics and Weight Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Size, Dimensions, Aerodynamics and Weight

Wheelbase : 403.5 cm / 158.86 inches
Length : 636.3 cm / 250.51 inches
Width : 205.0 cm / 80.71 inches
Height : 252.4 cm / 99.37 inches
Front Axle : 180.1 cm / 70.91 inches
Rear Axle : 179.0 cm / 70.47 inches
Cargo box inside length : 407.0 cm / 160.24 inches
Cargo box inside height : 193.2 cm / 76.06 inches
Cargo width : 187.0 cm / 73.62 inches
Max. width at wheelhouse : 142.2 cm / 55.98 inches
Loading height : 56.0 cm / 22.05 inches
Rear door width : 156.2 cm / 61.5 inches
Rear door height : 179.0 cm / 70.47 inches
Side door width : 125.0 cm / 49.21 inches
Side door height : 175.5 cm / 69.09 inches
Max. Towing Capacity Weight : 2500 kg / 5512 lbs
Aerodynamic drag coefficient - Cx : -
Curb Weight : 2135 kg / 4707 lbs
Weight/Power Output Ratio : 11.9 kg/hp

Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Interior size, Dimensions Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Interior size, Dimensions

Num. of Seats : 6 seats
Trunk / Boot capacity : 15000 L / 529.7 cu-ft
Trunk / Boot First Row : 15000 L / 529.7 cu-ft

Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Brakes, Tires, Steering and Suspension Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions : Vented Discs
(280 mm / 11.02 inches)
Rear Brakes - Disc dimensions : Discs
(280 mm / 11.02 inches)
Front Tyres - Rims dimensions : 215/75 R16
Rear Tyres - Rims dimensions : 215/75 R16
Front Suspension : Independent. MacPherson. Coil Springs. Anti-roll bar.
Rear Suspension : Tubular axle, leaf springs
If you found an error in these specifications submit your correction here
What engine is in Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto?
The Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto has a Inline 4, Diesel engine with 2184 cm3 / 133.3 cu-in capacity.

How many horsepower (hp) does a 2024 Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto have?
The 2024 Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto has 180 PS / 178 bhp / 132 kW.

How much does a Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto weighs?
The Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto weighs 2135 Kg / 4707 lbs.

Is Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto All Wheel Drive (AWD)?
No, the Toyota Proace Max L4H2 DoubleCab 35 Heavy 2.2D 180HP Auto is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).
