Alto 4 Works JDM Versions

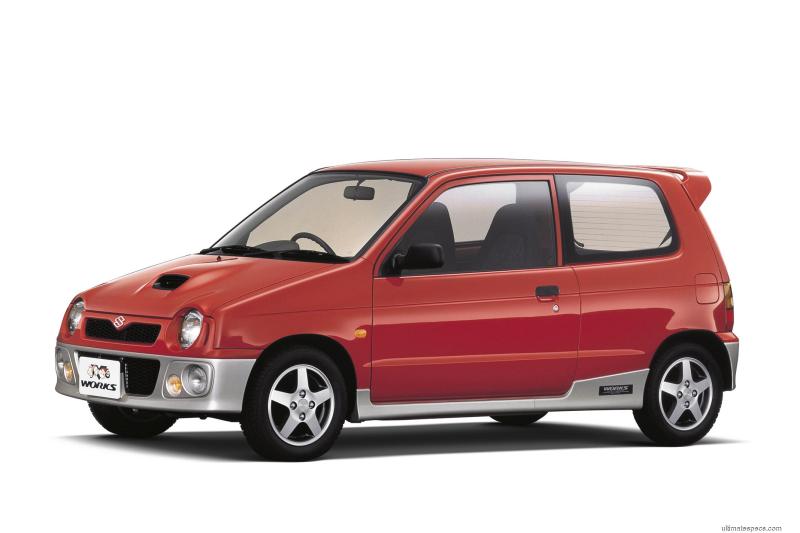

Suzuki Alto 4 Works JDM Turbo ie/s 4WD Specs

(1994 - 1995) - Technical Specifications for Years 1994, 1995

Petrol

657 cm³
40.1 cu-in

Inline 3

64 PS
63 HP / 47 kW

98.1 Nm
72 lb-ft

Suzuki Alto 4 Works JDM Turbo ie/s 4WD Body, Model and Production details

Generation :	Alto 4th Gen (HA)

Body :	Hatchback

Num. of Doors :	3 doors


Suzuki Alto 4 Works JDM Turbo ie/s 4WD Engine Technical Data

Engine type - Number of cylinders :	Inline 3

Engine Code :	F6A

Fuel type :	Petrol

Fuel System :	Multipoint Indirect Injection

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	657 cm³ / 40.1 cu-in

Bore x Stroke :	65.0 x 66.0 mm 2.56 x 2.6 inches

Number of valves :	6 Valves

Aspiration :	Turbo

Compression Ratio :	8.1

Horsepower :	64 PS / 63 HP / 47 kW @ 6000 rpm

Maximum torque :	98.1 Nm / 72 lb-ft @ 4000 rpm

Drive wheels - Traction - Drivetrain :	AWD

Transmission Gearbox - Number of speeds :	5 speed Manual Transmission Relations 1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: Reverse Gear Ratio: 3.58 Final Drive Ratio: 4.71


Suzuki Alto 4 Works JDM Turbo ie/s 4WD Fuel Consumption (Economy), Emissions and Range

Fuel Tank Capacity :	30 L 7.9 US gallons 6.6 UK gallons

Catalytic converter :	Yes

Suzuki Alto 4 Works JDM Turbo ie/s 4WD Performance

Top Speed :	- km/h / - Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Suzuki Alto 4 Works JDM Turbo ie/s 4WD Size, Dimensions, Aerodynamics and Weight

Wheelbase :	233.5 cm / 91.93 inches

Length :	329.5 cm / 129.72 inches

Width :	139.5 cm / 54.92 inches

Height :	138.5 cm / 54.53 inches

Front Axle :	122.0 cm / 48.03 inches

Rear Axle :	120.0 cm / 47.24 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	710 kg / 1565 lbs

Weight/Power Output Ratio :	11.1 kg/hp


Suzuki Alto 4 Works JDM Turbo ie/s 4WD Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	-


Suzuki Alto 4 Works JDM Turbo ie/s 4WD Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Drums (- mm / - inches)

Front Tyres - Rims dimensions :	155/65 R13

Rear Tyres - Rims dimensions :	155/65 R13

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Coil Springs.
