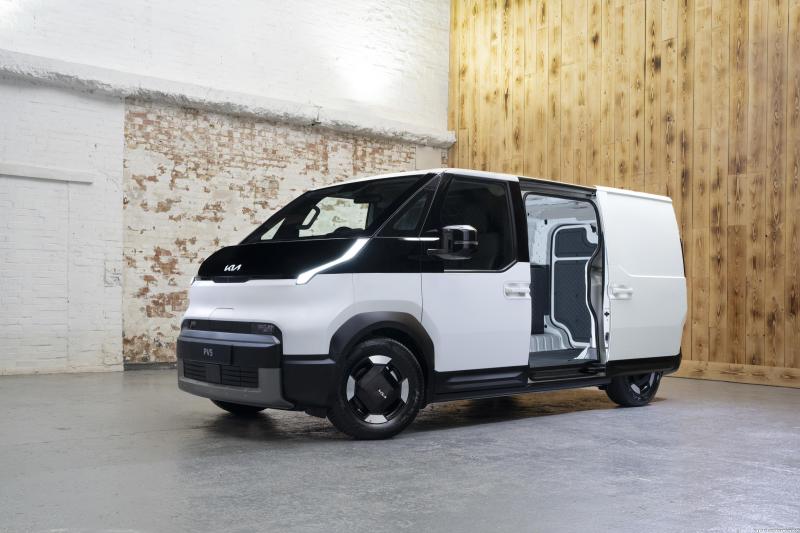

Kia PV5 Cargo L1H1 51.5kWh Body, Model and Production details
|
|
| Generation : | PV5 - 2025 New Model |
| Body : | Van |
| Num. of Doors : | 4 doors |
Kia PV5 Cargo L1H1 51.5kWh Engine Technical Data
|
|
| Engine Type : | Electric |
| Total electric power : | 121 PS / 119 HP / 89 kW |
| Total electric torque : | 250 Nm / 184 lb-ft |
| Horsepower : | 121 PS / 119 HP / 89 kW |
| Maximum torque : | 250 Nm / 184 lb-ft |
| Number of electric engines: | 1 |
| Electric engine 1 type: | PSM - Permanent Magnet Synchronous Motor |
| Rear Axle Electric Engine Power: | 121 PS / 119 HP / 89 kW |
| Rear Axle Electric Engine Torque: | 250 Nm / 184 lb-ft |
| Drive wheels - Traction - Drivetrain : | FWD |
| Transmission Gearbox - Number of speeds : |
1 speed Reduction Gear
|
 Kia PV5 Cargo L1H1 51.5kWh Battery Technical Data, Charging and Range
|
|||||||||||||
| Range (WLTP): | 291 km / 181 miles | ||||||||||||
| Average energy consumption WLTP: | 19.8 kWh / 100 km (3.14 miles / kWh) | ||||||||||||
| Battery type : | Lithium-NMC Lithium nickel manganese cobalt | ||||||||||||
|
|||||||||||||
| Fast charge current : | 150.0 kW | ||||||||||||
| Net battery capacity : | 51.5 kWh | ||||||||||||
| CO2 emissions WLTP : | 0 g/km (Kia) | ||||||||||||
Kia PV5 Cargo L1H1 51.5kWh Performance
|
|
| Top Speed : | 135 km/h / 84 Mph |
| Acceleration 0 to 100 km/h (0 to 62 mph) : | 16.3 s |
Kia PV5 Cargo L1H1 51.5kWh Size, Dimensions, Aerodynamics and Weight
|
|
| Wheelbase : | 299.5 cm / 117.91 inches |
| Length : | 469.5 cm / 184.84 inches |
| Width : | 189.5 cm / 74.61 inches |
| Width with mirrors : | 225.5 cm / 88.78 inches |
| Height : | 192.3 cm / 75.71 inches |
| Front Axle : | 161.7 cm / 63.66 inches |
| Rear Axle : | 162.5 cm / 63.98 inches |
| Ground clearance : | 14.3 cm / 5.63 inches |
| Cargo box inside length : | 225.5 cm / 88.78 inches |
| Cargo box inside height : | 152.0 cm / 59.84 inches |
| Cargo width : | 156.5 cm / 61.61 inches |
| Max. width at wheelhouse : | 133.0 cm / 52.36 inches |
| Rear door width : | 134.3 cm / 52.87 inches |
| Side door width : | 77.5 cm / 30.51 inches |
| Aerodynamic drag coefficient - Cx : | - |
| Curb Weight : | 1860 kg / 4101 lbs |
| Weight/Power Output Ratio : | 15.4 kg/hp |
Kia PV5 Cargo L1H1 51.5kWh Interior size, Dimensions
|
|
| Num. of Seats : | 2 seats |
| Trunk / Boot capacity : | 4420 L / 156.1 cu-ft |
| Trunk / Boot First Row : | 4420 L / 156.1 cu-ft |
Kia PV5 Cargo L1H1 51.5kWh Brakes, Tires, Steering and Suspension
|
|||
| Front Brakes - Disc dimensions : |
Vented Discs (- mm / - inches) |
||
| Rear Brakes - Disc dimensions : |
Discs (- mm / - inches) |
||
| Front Tyres - Rims dimensions : | 215/65 R16 | ||
| Rear Tyres - Rims dimensions : | 215/65 R16 | ||
| Turning circle : | 11.0 m / 36.1 feet | ||
| Front Suspension : | Double Wishbone. Coil Springs. | ||
| Rear Suspension : | Coupled Torsion Beam Axle. Coil Springs. | ||
