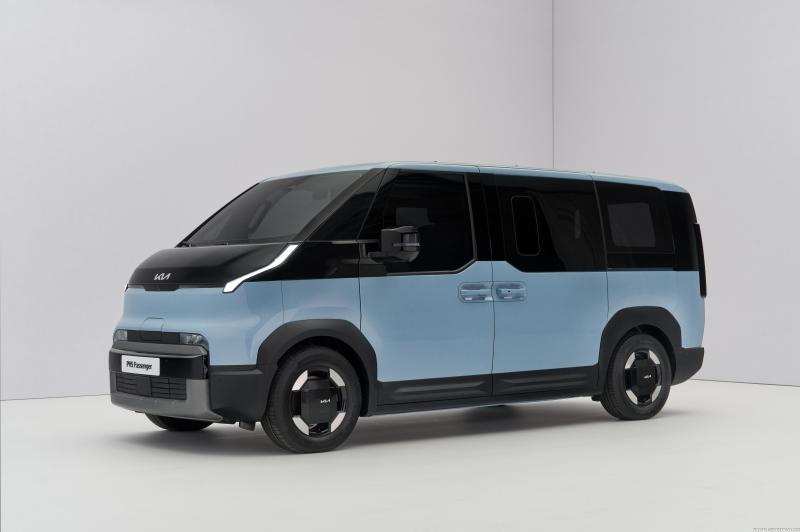

Kia PV5 Passenger 71.2kWh Specs

(2025 - ) - Technical Specifications for 2025

Key Specs

Electric

163 PS
161 HP / 120 kW

250 Nm
184 lb-ft

135 km/h
84 Mph

400 km
249 miles

Compare with another car

More pictures

Kia PV5 Passenger 71.2kWh Body, Model and Production details

Generation :	PV5 - 2025 New Model

Body :	Bus

Num. of Doors :	5 doors


Kia PV5 Passenger 71.2kWh Engine Technical Data

Engine Type :	Electric

Total electric power :	163 PS / 161 HP / 120 kW

Total electric torque :	250 Nm / 184 lb-ft

Horsepower :	163 PS / 161 HP / 120 kW

Maximum torque :	250 Nm / 184 lb-ft

Number of electric engines:	1

Electric engine 1 type:	PSM - Permanent Magnet Synchronous Motor

Rear Axle Electric Engine Power:	163 PS / 161 HP / 120 kW

Rear Axle Electric Engine Torque:	250 Nm / 184 lb-ft

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	1 speed Reduction Gear

Kia PV5 Passenger 71.2kWh Battery Technical Data, Charging and Range

Range (WLTP):

400 km / 249 miles

Average energy consumption WLTP:

20.3 kWh / 100 km (3.06 miles / kWh)

Battery type :

Lithium-NMC Lithium nickel manganese cobalt

Charging Time
DC	150 kW	80%	0h30m
Wallbox 3-phase	11 kW	100%	7h00m

Fast charge current :

150.0 kW

Net battery capacity :

71.2 kWh

CO2 emissions WLTP :

0 g/km (Kia)

Kia PV5 Passenger 71.2kWh Performance

Top Speed :	135 km/h / 84 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	10.7 s


Kia PV5 Passenger 71.2kWh Size, Dimensions, Aerodynamics and Weight

Wheelbase :	299.5 cm / 117.91 inches

Length :	469.5 cm / 184.84 inches

Width :	189.5 cm / 74.61 inches

Width with mirrors :	225.5 cm / 88.78 inches

Height :	192.3 cm / 75.71 inches

Front Axle :	161.7 cm / 63.66 inches

Rear Axle :	162.5 cm / 63.98 inches

Ground clearance :	14.3 cm / 5.63 inches

Cargo box inside height :	152.0 cm / 59.84 inches

Cargo width :	156.5 cm / 61.61 inches

Max. width at wheelhouse :	133.0 cm / 52.36 inches

Rear door width :	134.3 cm / 52.87 inches

Side door width :	77.5 cm / 30.51 inches

Max. Towing Capacity Weight :	1500 kg / 3307 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2145 kg / 4729 lbs

Weight/Power Output Ratio :	13.2 kg/hp


Kia PV5 Passenger 71.2kWh Interior size, Dimensions

Num. of Seats :	5 seats

Front legroom :	104.1 cm / 40.98 inches

Rear seat legroom :	99.5 cm / 39.17 inches

Front shoulder room :	173.2 cm / 68.19 inches

Rear shoulder room :	161.7 cm / 63.66 inches

Front head room :	102.0 cm / 40.16 inches

Rear head room :	107.6 cm / 42.36 inches

Trunk / Boot capacity :	1320 L / 46.6 cu-ft

Trunk / Boot First Row :	2300 L / 81.2 cu-ft


Kia PV5 Passenger 71.2kWh Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Discs (- mm / - inches)

Front Tyres - Rims dimensions :	215/65 R16

Rear Tyres - Rims dimensions :	215/65 R16

Turning circle :	11.0 m / 36.1 feet

Front Suspension :	Double Wishbone. Coil Springs.

Rear Suspension :	Coupled Torsion Beam Axle. Coil Springs.

What engine is in Kia PV5 Passenger 71.2kWh?
The Kia PV5 Passenger 71.2kWh has 1 electric engine(s) PSM - Permanent Magnet Synchronous Motor.

How many horsepower (hp) does a 2025 Kia PV5 Passenger 71.2kWh have?
The 2025 Kia PV5 Passenger 71.2kWh has 163 PS / 161 bhp / 120 kW.

How much does a Kia PV5 Passenger 71.2kWh weighs?
The Kia PV5 Passenger 71.2kWh weighs 2145 Kg / 4729 lbs.

What is the top speed of a Kia PV5 Passenger 71.2kWh?
The Kia PV5 Passenger 71.2kWh top speed is 135 Km/h / 84 mph.

Is Kia PV5 Passenger 71.2kWh All Wheel Drive (AWD)?
No, the Kia PV5 Passenger 71.2kWh is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).

How fast is a Kia PV5 Passenger 71.2kWh?
The Kia PV5 Passenger 71.2kWh can reach 0 to 100 km/h (0 to 62 mph) in 10.7 seconds and has a top speed of 135 km/h.
