Genesis GV70 Electrified 77.4 kWh AWD Specs

(2022 - ) - Technical Specifications for Years 2022, 2023, 2024, 2025

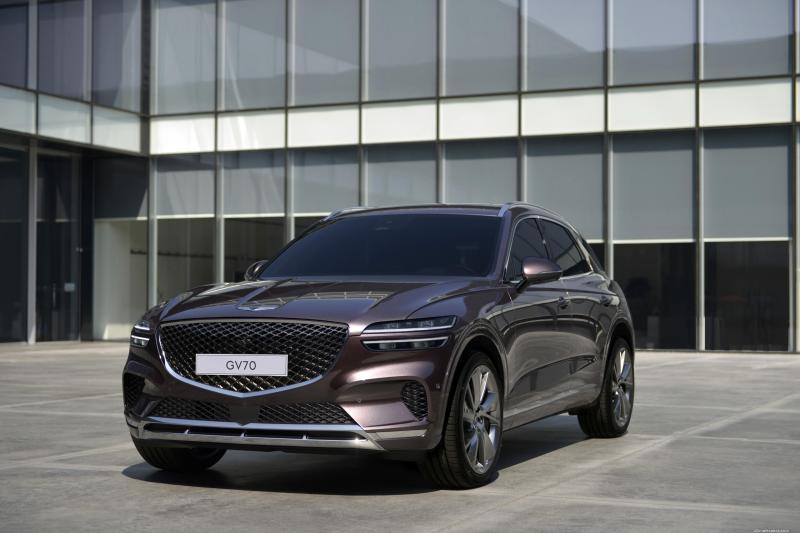

Genesis GV70 image

Key Specs

Electric
490 PS
483 HP / 360 kW
700 Nm
516 lb-ft
235 km/h
146 Mph
455 km
283 miles
380 km
236 miles

Genesis GV70 Electrified 77.4 kWh AWD Body, Model and Production details Genesis GV70 Electrified 77.4 kWh AWD Body, Model and Production details

Body : SUV
Num. of Doors : 5 doors

Genesis GV70 Electrified 77.4 kWh AWD Engine Technical Data Genesis GV70 Electrified 77.4 kWh AWD Engine Technical Data

Engine Type : Electric
Total electric power : 490 PS / 483 HP / 360 kW
Total electric torque : 700 Nm / 516 lb-ft
Horsepower : 490 PS / 483 HP / 360 kW
Maximum torque : 700 Nm / 516 lb-ft
Number of electric engines: 2
Electric engine 1 type: PSM - Permanent Magnet Synchronous Motor
Front Axle Electric Engine Power: 245 PS / 242 HP / 180 kW
Front Axle Electric Engine Torque: 350 Nm / 258 lb-ft
Electric engine 2 type: PSM - Permanent Magnet Synchronous Motor
Rear Axle Electric Engine Power: 245 PS / 242 HP / 180 kW
Rear Axle Electric Engine Torque: 350 Nm / 258 lb-ft
Drive wheels - Traction - Drivetrain : AWD
Transmission Gearbox - Number of speeds :

Genesis GV70 Electrified 77.4 kWh AWD Battery Technical Data, Charging and RangeGenesis GV70 Electrified 77.4 kWh AWD Battery Technical Data, Charging and Range

Range (EPA): 380 km / 236 miles
Range (WLTP): 455 km / 283 miles
Average energy consumption WLTP: 19.2 kWh / 100 km (3.24 miles / kWh)
Battery type : Lithium-ion
Battery voltage : 697 V
Charging Time
DC350 kW80%0h18m
DC50 kW80%1h12m
Wallbox 3-phase11 kW100%7h02m
AC-1 Schuko2.3 kW100%34h00m
Fast charge current : 350 kW
Battery capacity : 77.4 kWh

Genesis GV70 Electrified 77.4 kWh AWD Performance Genesis GV70 Electrified 77.4 kWh AWD Performance

Top Speed : 235 km/h / 146 Mph
Acceleration 0 to 100 km/h (0 to 62 mph) : 4.2 s

Genesis GV70 Electrified 77.4 kWh AWD Size, Dimensions, Aerodynamics and Weight Genesis GV70 Electrified 77.4 kWh AWD Size, Dimensions, Aerodynamics and Weight

Wheelbase : 287.5 cm / 113.19 inches
Length : 471.5 cm / 185.63 inches
Width : 191.0 cm / 75.2 inches
Width with mirrors : 216.5 cm / 85.24 inches
Height : 163.0 cm / 64.17 inches
Front Axle : 164.3 cm / 64.69 inches
Rear Axle : 165.7 cm / 65.24 inches
Ground clearance : 17.4 cm / 6.85 inches
Max. Towing Capacity Weight : 1800 kg / 3968 lbs
Aerodynamic drag coefficient - Cx : 0.29
Curb Weight : 2310 kg / 5093 lbs
Weight/Power Output Ratio : 4.7 kg/hp

Genesis GV70 Electrified 77.4 kWh AWD Interior size, Dimensions Genesis GV70 Electrified 77.4 kWh AWD Interior size, Dimensions

Num. of Seats : 5 seats
Trunk / Boot capacity : 506 L / 17.9 cu-ft
Trunk / Boot First Row : 1678 L / 59.3 cu-ft

Genesis GV70 Electrified 77.4 kWh AWD Brakes, Tires, Steering and Suspension Genesis GV70 Electrified 77.4 kWh AWD Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions : Vented Discs
(360 mm / 14.17 inches)
Rear Brakes - Disc dimensions : Vented Discs
(345 mm / 13.58 inches)
Front Tyres - Rims dimensions : 235/55 R19
Rear Tyres - Rims dimensions : 235/55 R19
Turning circle : 11.5 m / 37.7 feet
Front Suspension : Independent. MacPherson. Coil Springs.
Rear Suspension : Multi-link. Coil Springs.
