Generation : | Ducato (X290) - 2024 Update |
Body : | Van |
Num. of Doors : | 4 doors |
![]() |
|
Engine type - Number of cylinders : | Inline 4 |
Engine Code : | Fiat 2.2 Multijet3 46348913 - Euro6d |
Fuel type : | Diesel |
Fuel System : | Common Rail |
Lubrication : |
See oil information ![]() Fiat Ducato L4H2 Maxi Van XL 2024 35 180 Multijet3 (glass windows) Auto Oil Specifications - Engine oil All Weather: 0W30 OEM: Fiat 9.55535-DS1 API/ACEA: ACEA C2 Engine oil capacity (with filter): 6.1 L |
Engine Alignment : | Transverse |
Engine Position : | Front |
Engine displacement : | 2184 cm3 / 133.3 cu-in |
Bore x Stroke : |
83.8 x 99 mm 3.3 x 3.9 inches |
Number of valves : | 16 Valves |
Aspiration : | Turbo Intercooler |
Compression Ratio : | 15.5 |
Horsepower : |
180 PS / 178 HP / 132 kW @ 3500 rpm |
Maximum torque : |
450 Nm / 331 lb-ft @ 1500-1750 rpm |
Drive wheels - Traction - Drivetrain : | FWD |
Transmission Gearbox - Number of speeds : |
8 speed Automatic
|
![]() |
|
Fuel Consumption - Economy - Combined WLTP: |
8.1 L/100 km 35 MPG UK 29 MPG US |
Range (WLTP): | 1111 km / 690 miles |
Fuel Tank Capacity : |
90 L 23.8 US gallons 19.8 UK gallons |
AdBlue Tank : |
19 L 5 US gallons 4.2 UK gallons |
CO2 emissions WLTP : | 212 g/km (Fiat) |
Catalytic converter : | Particle Filter (with SCR cat.) |
![]() |
|
Top Speed : | 161 km/h / 100 Mph |
Acceleration 0 to 100 km/h (0 to 62 mph) : | - s |
![]() |
|

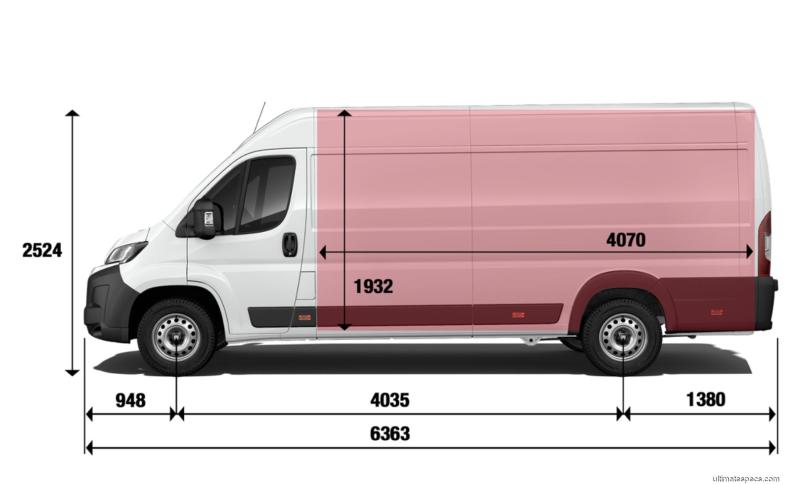

Wheelbase : | 403.5 cm / 158.86 inches |
Length : | 636.3 cm / 250.51 inches |
Width : | 205.0 cm / 80.71 inches |
Height : | 253.4 cm / 99.76 inches |
Front Axle : | 181.0 cm / 71.26 inches |
Rear Axle : | 179.0 cm / 70.47 inches |
Ground clearance : | 16.2 cm / 6.38 inches |
Cargo box inside length : | 407.0 cm / 160.24 inches |
Cargo box inside height : | 193.2 cm / 76.06 inches |
Cargo width : | 187.0 cm / 73.62 inches |
Max. width at wheelhouse : | 142.2 cm / 55.98 inches |
Loading height : | 55.0 cm / 21.65 inches |
Rear door width : | 156.2 cm / 61.5 inches |
Rear door height : | 179.0 cm / 70.47 inches |
Side door width : | 125.0 cm / 49.21 inches |
Side door height : | 175.5 cm / 69.09 inches |
Aerodynamic drag coefficient - Cx : | - |
Curb Weight : | 2255 kg / 4971 lbs |
Weight/Power Output Ratio : | 12.5 kg/hp |
![]() |
|
Num. of Seats : | 3 seats |
Trunk / Boot capacity : | 15000 L / 529.7 cu-ft |
Trunk / Boot First Row : | 15000 L / 529.7 cu-ft |
![]() |
|||
Front Brakes - Disc dimensions : |
Vented Discs (300 mm / 11.81 inches) |
||
Rear Brakes - Disc dimensions : |
Discs (300 mm / 11.81 inches) |
||
Front Tyres - Rims dimensions : | 215/75 R16 | ||
Rear Tyres - Rims dimensions : | 215/75 R16 | ||
Turning circle : | 15.3 m / 50.2 feet | ||
Front Suspension : | Independent. MacPherson. Coil Springs. Anti-roll bar. | ||
Rear Suspension : | Torsion Bar. Leaf Springs. |
