Ducato L2H2 Glass-Windows 2024 Versions

- 35 140 Multijet3 (2023)- 35 180 Multijet3 (2023)- 35 180 Multijet3 Auto (2023)

Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Specs

(2023 - ) - Technical Specifications for Years 2023, 2024, 2025

Fiat Ducato L2H2 Glass-Windows 2024 image

Key Specs

Diesel

2184 cm³
133.3 cu-in

Inline 4

140 PS
138 HP / 103 kW

350 Nm
258 lb-ft

153 km/h
95 Mph

8.1 L/100 km
35 MPG UK
29 MPG US

Compare with another car

More pictures

Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Body, Model and Production details

Generation :	Ducato (X290) - 2024 Update

Body :	Van

Num. of Doors :	4 doors


Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	Fiat Multijet3 4H03 46349131 - Euro6d

Fuel type :	Diesel

Fuel System :	Common Rail

Lubrication :	See oil information Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Oil Specifications - Engine oil All Weather: 0W30 OEM: Fiat 9.55535-DS1 API/ACEA: ACEA C2 Engine oil capacity (with filter): 6.2 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	2184 cm³ / 133.3 cu-in

Bore x Stroke :	83.8 x 99 mm 3.3 x 3.9 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	15.5

Horsepower :	140 PS / 138 HP / 103 kW @ 3500 rpm

Maximum torque :	350 Nm / 258 lb-ft @ 1400-2500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined WLTP:	8.1 L/100 km 35 MPG UK 29 MPG US

Range (WLTP):	1111 km / 690 miles

Fuel Tank Capacity :	90 L 23.8 US gallons 19.8 UK gallons

AdBlue Tank :	19 L 5 US gallons 4.2 UK gallons

CO2 emissions WLTP :	211 g/km (Fiat)

Catalytic converter :	Particle Filter (with SCR cat.)

Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Performance

Top Speed :	153 km/h / 95 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s

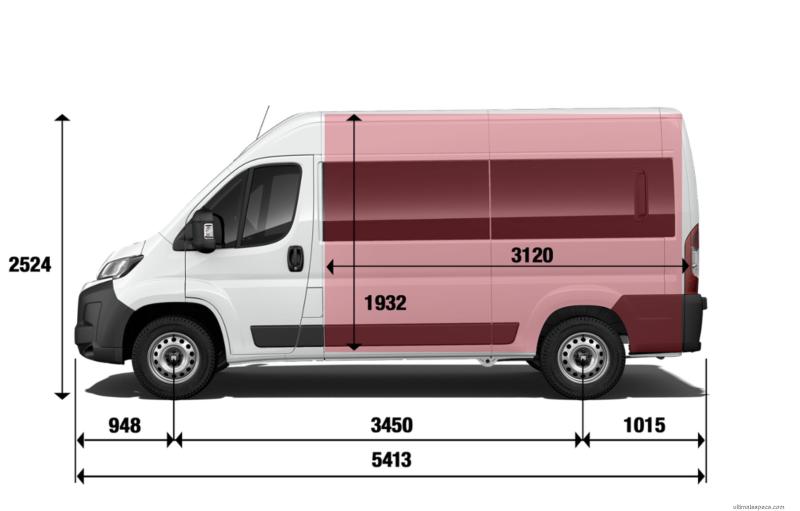

Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	345.0 cm / 135.83 inches

Length :	541.3 cm / 213.11 inches

Width :	205.0 cm / 80.71 inches

Height :	252.4 cm / 99.37 inches

Front Axle :	181.0 cm / 71.26 inches

Rear Axle :	179.0 cm / 70.47 inches

Ground clearance :	16.2 cm / 6.38 inches

Cargo box inside length :	312.0 cm / 122.83 inches

Cargo box inside height :	193.2 cm / 76.06 inches

Cargo width :	187.0 cm / 73.62 inches

Max. width at wheelhouse :	142.2 cm / 55.98 inches

Loading height :	53.5 cm / 21.06 inches

Rear door width :	156.2 cm / 61.5 inches

Rear door height :	179.0 cm / 70.47 inches

Side door width :	125.0 cm / 49.21 inches

Side door height :	175.5 cm / 69.09 inches

Max. Towing Capacity Weight :	2000 kg / 4409 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2100 kg / 4630 lbs

Weight/Power Output Ratio :	15 kg/hp


Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Interior size, Dimensions

Num. of Seats :	3 seats

Trunk / Boot capacity :	11500 L / 406.1 cu-ft

Trunk / Boot First Row :	10000 L / 353.1 cu-ft


Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (280 mm / 11.02 inches)

Rear Brakes - Disc dimensions :	Discs (280 mm / 11.02 inches)

Front Tyres - Rims dimensions :	215/70 R15

Rear Tyres - Rims dimensions :	215/70 R15

Turning circle :	12.5 m / 41 feet

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Torsion Bar. Leaf Springs.

What engine is in Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3?
The Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 has a Inline 4, Diesel engine with 2184 cm³ / 133.3 cu-in capacity.

How many horsepower (hp) does a 2023 Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 have?
The 2023 Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 has 140 PS / 138 bhp / 103 kW.

How much does a Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 weighs?
The Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 weighs 2100 Kg / 4630 lbs.

What is the top speed of a Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3?
The Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 top speed is 153 Km/h / 95 mph.

Is Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 All Wheel Drive (AWD)?
No, the Fiat Ducato L2H2 Glass-Windows 2024 35 140 Multijet3 is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).
