Fiat Ducato L2H2 2024 Maxi 35 180 Multijet3 Auto Body, Model and Production details
|
|
| Generation : | Ducato (X290) - 2024 Update |
| Body : | Van |
| Num. of Doors : | 4 doors |
Fiat Ducato L2H2 2024 Maxi 35 180 Multijet3 Auto Engine Technical Data
|
|
| Engine type - Number of cylinders : | Inline 4 |
| Engine Code : | Fiat 2.2 Multijet3 46348913 - Euro6d |
| Fuel type : | Diesel |
| Fuel System : | Common Rail |
| Lubrication : |
See oil information  Fiat Ducato L2H2 2024 Maxi 35 180 Multijet3 Auto Oil Specifications - Engine oil All Weather: 0W30 OEM: Fiat 9.55535-DS1 API/ACEA: ACEA C2 Engine oil capacity (with filter): 6.1 L |
| Engine Alignment : | Transverse |
| Engine Position : | Front |
| Engine displacement : | 2184 cm3 / 133.3 cu-in |
| Bore x Stroke : |
83.8 x 99 mm 3.3 x 3.9 inches |
| Number of valves : | 16 Valves |
| Aspiration : | Turbo Intercooler |
| Compression Ratio : | 15.5 |
| Horsepower : |
180 PS / 178 HP / 132 kW @ 3500 rpm |
| Maximum torque : |
450 Nm / 331 lb-ft @ 1500-1750 rpm |
| Drive wheels - Traction - Drivetrain : | FWD |
| Transmission Gearbox - Number of speeds : |
8 speed Automatic
|
Fiat Ducato L2H2 2024 Maxi 35 180 Multijet3 Auto Fuel Consumption (Economy), Emissions and Range
|
|
| Fuel Consumption - Economy - Combined WLTP: |
8 L/100 km 35 MPG UK 29 MPG US |
| Range (WLTP): | 1125 km / 699 miles |
| Fuel Tank Capacity : |
90 L 23.8 US gallons 19.8 UK gallons |
| AdBlue Tank : |
19 L 5 US gallons 4.2 UK gallons |
| CO2 emissions WLTP : | 211 g/km (Fiat) |
| Catalytic converter : | Particle Filter (with SCR cat.) |
Fiat Ducato L2H2 2024 Maxi 35 180 Multijet3 Auto Performance
|
|
| Top Speed : | 161 km/h / 100 Mph |
| Acceleration 0 to 100 km/h (0 to 62 mph) : | - s |

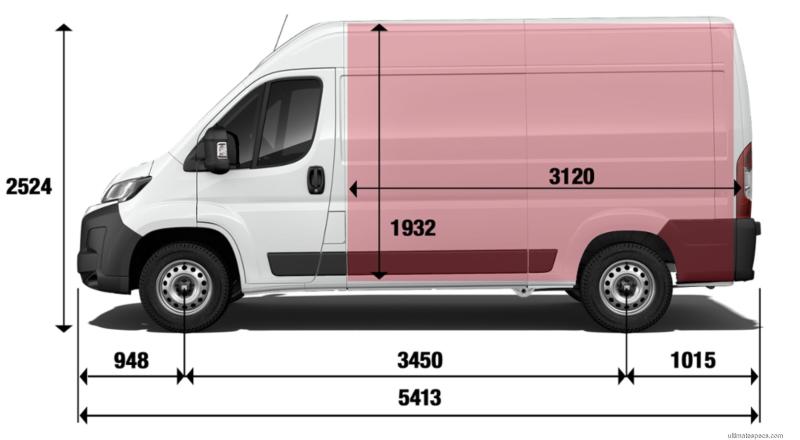

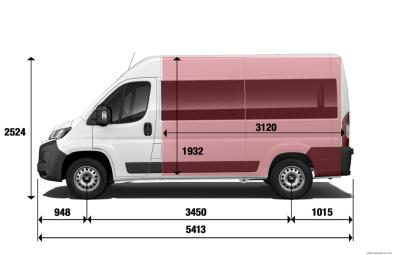

Fiat Ducato L2H2 2024 Maxi 35 180 Multijet3 Auto Size, Dimensions, Aerodynamics and Weight
|
|
| Wheelbase : | 345.0 cm / 135.83 inches |
| Length : | 541.3 cm / 213.11 inches |
| Width : | 205.0 cm / 80.71 inches |
| Height : | 253.9 cm / 99.96 inches |
| Front Axle : | 181.0 cm / 71.26 inches |
| Rear Axle : | 179.0 cm / 70.47 inches |
| Ground clearance : | 16.2 cm / 6.38 inches |
| Cargo box inside length : | 312.0 cm / 122.83 inches |
| Cargo box inside height : | 162.2 cm / 63.86 inches |
| Cargo width : | 187.0 cm / 73.62 inches |
| Max. width at wheelhouse : | 142.2 cm / 55.98 inches |
| Loading height : | 55.0 cm / 21.65 inches |
| Rear door width : | 156.2 cm / 61.5 inches |
| Rear door height : | 179.0 cm / 70.47 inches |
| Side door width : | 125.0 cm / 49.21 inches |
| Side door height : | 175.5 cm / 69.09 inches |
| Max. Towing Capacity Weight : | 2000 kg / 4409 lbs |
| Aerodynamic drag coefficient - Cx : | - |
| Curb Weight : | 2160 kg / 4762 lbs |
| Weight/Power Output Ratio : | 12 kg/hp |
Fiat Ducato L2H2 2024 Maxi 35 180 Multijet3 Auto Interior size, Dimensions
|
|
| Num. of Seats : | 3 seats |
| Trunk / Boot capacity : | 11500 L / 406.1 cu-ft |
| Trunk / Boot First Row : | 10000 L / 353.1 cu-ft |
Fiat Ducato L2H2 2024 Maxi 35 180 Multijet3 Auto Brakes, Tires, Steering and Suspension
|
|||
| Front Brakes - Disc dimensions : |
Vented Discs (300 mm / 11.81 inches) |
||
| Rear Brakes - Disc dimensions : |
Discs (300 mm / 11.81 inches) |
||
| Front Tyres - Rims dimensions : | 215/75 R16 | ||
| Rear Tyres - Rims dimensions : | 215/75 R16 | ||
| Turning circle : | 12.5 m / 41 feet | ||
| Front Suspension : | Independent. MacPherson. Coil Springs. Anti-roll bar. | ||
| Rear Suspension : | Torsion Bar. Leaf Springs. | ||
