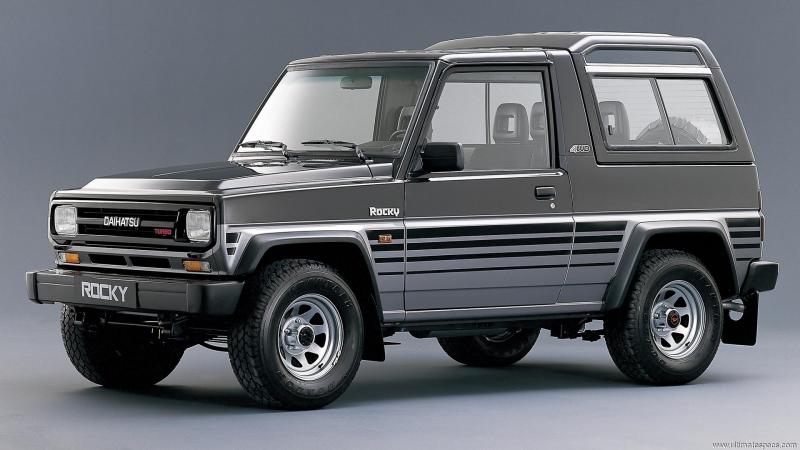

Daihatsu Rocky I 2.8 Turbo Diesel Wagon Specs

(1991 - 1994) - Technical Specifications for Years 1991, 1992, 1993, 1994

Diesel

2765 cm³
168.7 cu-in

Inline 4

102 PS
101 HP / 75 kW

234 Nm
172 lb-ft

135 km/h
84 Mph

10.5 L/100 km
27 MPG UK
22 MPG US

Daihatsu Rocky I 2.8 Turbo Diesel Wagon Body, Model and Production details

Body :	-


Daihatsu Rocky I 2.8 Turbo Diesel Wagon Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	DL52

Fuel type :	Diesel

Fuel System :	Bosch Nippon

Engine Alignment :	Longitudinal

Engine displacement :	2765 cm³ / 168.7 cu-in

Bore x Stroke :	92.0 x 104.0 mm 3.62 x 4.09 inches

Number of valves :	8 Valves

Aspiration :	Turbo

Compression Ratio :	21.2

Horsepower :	102 PS / 101 HP / 75 kW @ 3400 rpm

Maximum torque :	234 Nm / 172 lb-ft @ 1900 rpm

Drive wheels - Traction - Drivetrain :	AWD

Transmission Gearbox - Number of speeds :	5 speed Manual


Daihatsu Rocky I 2.8 Turbo Diesel Wagon Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined:	10.5 L/100 km 27 MPG UK 22 MPG US

Range :	571 km / 355 miles

Fuel Tank Capacity :	60 L 15.9 US gallons 13.2 UK gallons

Daihatsu Rocky I 2.8 Turbo Diesel Wagon Performance

Top Speed :	135 km/h / 84 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	18.1 s


Daihatsu Rocky I 2.8 Turbo Diesel Wagon Size, Dimensions, Aerodynamics and Weight

Wheelbase :	253.0 cm / 99.61 inches

Length :	412.0 cm / 162.2 inches

Width :	158.0 cm / 62.2 inches

Height :	191.0 cm / 75.2 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1598 kg / 3523 lbs

Weight/Power Output Ratio :	15.7 kg/hp


Daihatsu Rocky I 2.8 Turbo Diesel Wagon Interior size, Dimensions

Trunk / Boot capacity :	-


Daihatsu Rocky I 2.8 Turbo Diesel Wagon Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Drums (- mm / - inches)

Front Tyres - Rims dimensions :	255/70 R15

Rear Tyres - Rims dimensions :	255/70 R15

Front Suspension :	Independent. Double wishbone. Anti-roll bar. Torsion bar

Rear Suspension :	De-Dion axle. Coil Springs.
