C5 Aircross 2022 Versions

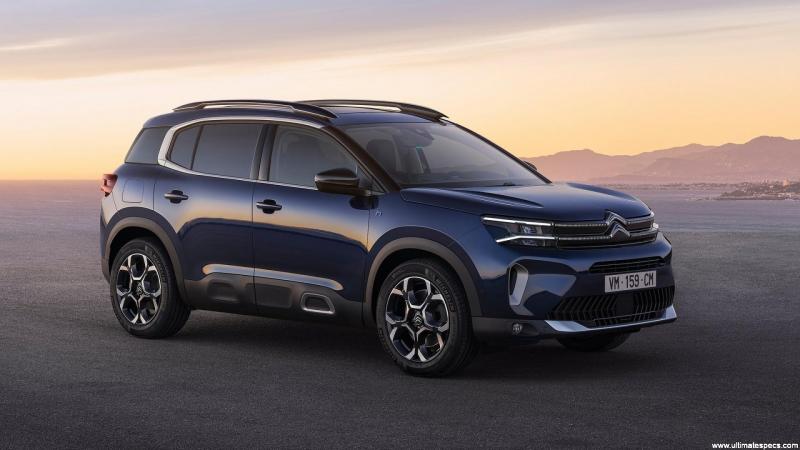

Citroen C5 Aircross 2022 Hybrid 136 Specs

(2023 - 2024) - Technical Specifications for Years 2023, 2024

Mild Hybrid / Petrol

1199 cm³
73.2 cu-in

Inline 3

136 PS
134 HP / 100 kW

230 Nm
169 lb-ft

200 km/h
124 Mph

5.7 L/100 km
50 MPG UK
41 MPG US

Citroen C5 Aircross 2022 Hybrid 136 Body, Model and Production details

Generation :	C5 Aircross - 2022 New Model

Body :	SUV

Num. of Doors :	5 doors


Citroen C5 Aircross 2022 Hybrid 136 Engine Technical Data

Engine type - Number of cylinders :	Inline 3

Engine Code :	HN09

Fuel type :	Mild Hybrid / Petrol

Fuel System :	Direct Injection

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	1199 cm³ / 73.2 cu-in

Bore x Stroke :	75.0 x 90.5 mm 2.95 x 3.56 inches

Number of valves :	12 Valves

Aspiration :	Turbo Intercooler

Horsepower :	136 PS / 134 HP / 100 kW @ 5500 rpm

Maximum torque :	230 Nm / 169 lb-ft @ 1750 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Dualclutch Automatic


Citroen C5 Aircross 2022 Hybrid 136 Electric Engines Technical Data

Total System Power :	136 PS / 134 HP / 100 kW

Total System Torque :	230 Nm / 169 lb-ft

Total electric power :	21 PS / 21 HP / 15 kW

Total electric torque :	51 Nm / 37 lb-ft

Number of electric engines:	1

Electric engine type:	PSM - Permanent Magnet Synchronous Motor

Transmission Electric Engine Power:	21 PS / 21 HP / 15 kW


Citroen C5 Aircross 2022 Hybrid 136 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP:	4.9 L/100 km 58 MPG UK 48 MPG US

Fuel Consumption - Economy - Medium WLTP:	5.4 L/100 km 52 MPG UK 44 MPG US

Fuel Consumption - Economy - High WLTP:	5.1 L/100 km 55 MPG UK 46 MPG US

Fuel Consumption - Economy - Extra high WLTP:	6.8 L/100 km 42 MPG UK 35 MPG US

Fuel Consumption - Economy - Combined WLTP:	5.7 L/100 km 50 MPG UK 41 MPG US

Range (WLTP):	912 km / 567 miles

Fuel Tank Capacity :	52 L 13.7 US gallons 11.4 UK gallons

CO2 emissions WLTP :	128 g/km (Citroen)

Emission standard :	Euro 6d - WLTP

Catalytic converter :	Particle Filter

Citroen C5 Aircross 2022 Hybrid 136 Performance

Top Speed :	200 km/h / 124 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Citroen C5 Aircross 2022 Hybrid 136 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	273.0 cm / 107.48 inches

Length :	450.0 cm / 177.17 inches

Width :	185.9 cm / 73.19 inches

Width with mirrors :	209.9 cm / 82.64 inches

Height :	168.8 cm / 66.46 inches

Front Axle :	157.9 cm / 62.17 inches

Rear Axle :	160.8 cm / 63.31 inches

Ground clearance :	23.0 cm / 9.06 inches

Max. Towing Capacity Weight :	1250 kg / 2756 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1606 kg / 3541 lbs

Weight/Power Output Ratio :	11.8 kg/hp


Citroen C5 Aircross 2022 Hybrid 136 Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	460 L / 16.2 cu-ft

Trunk / Boot First Row :	1510 L / 53.3 cu-ft


Citroen C5 Aircross 2022 Hybrid 136 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Discs (- mm / - inches)

Front Tyres - Rims dimensions :	205/55 R19

Rear Tyres - Rims dimensions :	205/55 R19

Turning circle :	10.7 m / 35.1 feet

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Coil Springs.
