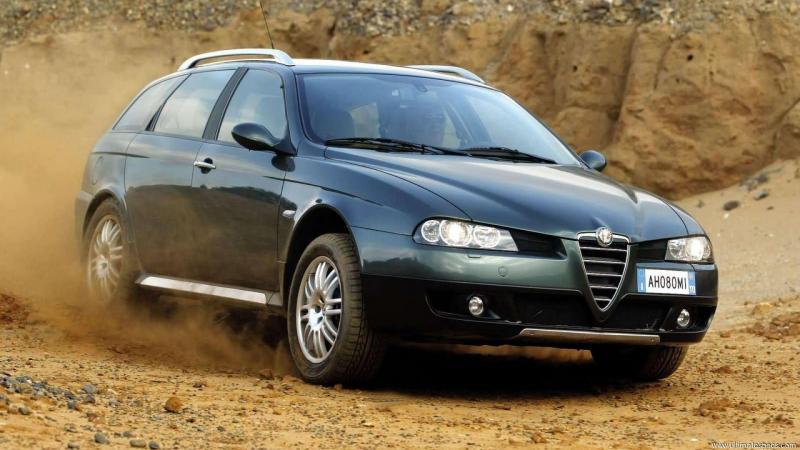

Alfa Romeo Crosswagon 1.9 JTD 16v Q4 Specs

(2005 - 2007) - Technical Specifications for Years 2005, 2006, 2007

Key Specs

Diesel

1910 cm³
116.6 cu-in

Inline 4

150 PS
148 HP / 110 kW

305 Nm
224 lb-ft

192 km/h
119 Mph

7.1 L/100 km
40 MPG UK
33 MPG US

Compare with another car

More pictures

Alfa Romeo Crosswagon 1.9 JTD 16v Q4 Body, Model and Production details

Generation :	156

Body :	-

Num. of Doors :	5 doors


Alfa Romeo Crosswagon 1.9 JTD 16v Q4 Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Diesel

Fuel System :	Common Rail

Engine Alignment :	Transverse

Engine displacement :	1910 cm³ / 116.6 cu-in

Bore x Stroke :	82.0 x 90.4 mm 3.23 x 3.56 inches

Number of valves :	16 Valves

Aspiration :	Turbo + Intercooler

Compression Ratio :	18.4

Horsepower :	150 PS / 148 HP / 110 kW @ 4000 rpm

Maximum torque :	305 Nm / 224 lb-ft @ 2000 rpm

Drive wheels - Traction - Drivetrain :	AWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Alfa Romeo Crosswagon 1.9 JTD 16v Q4 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined:	7.1 L/100 km 40 MPG UK 33 MPG US

Fuel Consumption - Economy - Open road:	5.8 L/100 km 49 MPG UK 41 MPG US

Fuel Consumption - Economy - City:	9.3 L/100 km 30 MPG UK 25 MPG US

Range :	887 km / 551 miles

Fuel Tank Capacity :	63 L 16.6 US gallons 13.9 UK gallons

Alfa Romeo Crosswagon 1.9 JTD 16v Q4 Performance

Top Speed :	192 km/h / 119 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	10.5 s


Alfa Romeo Crosswagon 1.9 JTD 16v Q4 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	260.0 cm / 102.36 inches

Length :	444.0 cm / 174.8 inches

Width :	176.0 cm / 69.29 inches

Height :	150.0 cm / 59.06 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1505 kg / 3318 lbs

Weight/Power Output Ratio :	10 kg/hp


Alfa Romeo Crosswagon 1.9 JTD 16v Q4 Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	from 360 L / 12.7 cu-ft


Alfa Romeo Crosswagon 1.9 JTD 16v Q4 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (330 mm / 12.99 inches)

Rear Brakes - Disc dimensions :	Discs (276 mm / 10.87 inches)

Front Tyres - Rims dimensions :	225/55 R17

Rear Tyres - Rims dimensions :	225/55 R17

Front Suspension :	Independent. Double wishbone. Coil Springs. Anti-roll bar.

Rear Suspension :	Torsion beam. Coil Springs. Anti-roll bar

What engine is in Alfa Romeo Crosswagon 1.9 JTD 16v Q4?
The Alfa Romeo Crosswagon 1.9 JTD 16v Q4 has a Inline 4, Diesel engine with 1910 cm³ / 116.6 cu-in capacity.

How many horsepower (hp) does a 2005 Alfa Romeo Crosswagon 1.9 JTD 16v Q4 have?
The 2005 Alfa Romeo Crosswagon 1.9 JTD 16v Q4 has 150 PS / 148 bhp / 110 kW.

How much does a Alfa Romeo Crosswagon 1.9 JTD 16v Q4 weighs?
The Alfa Romeo Crosswagon 1.9 JTD 16v Q4 weighs 1505 Kg / 3318 lbs.

What is the top speed of a Alfa Romeo Crosswagon 1.9 JTD 16v Q4?
The Alfa Romeo Crosswagon 1.9 JTD 16v Q4 top speed is 192 Km/h / 119 mph.

Is Alfa Romeo Crosswagon 1.9 JTD 16v Q4 All Wheel Drive (AWD)?
Yes, the Alfa Romeo Crosswagon 1.9 JTD 16v Q4 is All Wheel Drive (AWD).

How fast is a Alfa Romeo Crosswagon 1.9 JTD 16v Q4?
The Alfa Romeo Crosswagon 1.9 JTD 16v Q4 can reach 0 to 100 km/h (0 to 62 mph) in 10.5 seconds and has a top speed of 192 km/h.
