Acura TSX II 3.5i V6 Specs

(2011 - 2014) - Technical Specifications for Years 2011, 2012, 2013, 2014

Key Specs

Petrol

3471 cm³
211.8 cu-in

V 6

280 PS
276 HP / 206 kW

344 Nm
253 lb-ft

Compare with another car

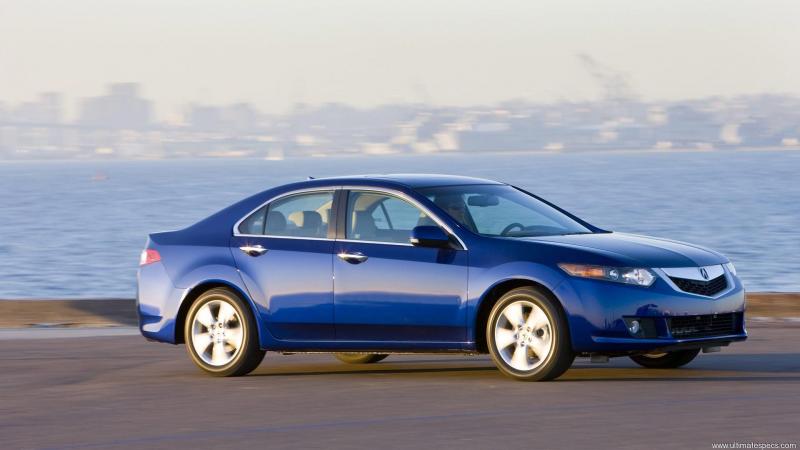

More pictures

Acura TSX II 3.5i V6 Body, Model and Production details

Generation :	CU2

Body :	Sedan

Num. of Doors :	4 doors


Acura TSX II 3.5i V6 Engine Technical Data

Engine type - Number of cylinders :	V 6

Engine Code :	Honda J35Z-series

Fuel type :	Petrol

Fuel System :	Honda PGM-Fi fuel injection

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	3471 cm³ / 211.8 cu-in

Bore x Stroke :	89.00 x 93.00 mm 3.5 x 3.66 inches

Number of valves :	24 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	11.20

Horsepower :	280 PS / 276 HP / 206 kW @ 6200 rpm

Maximum torque :	344 Nm / 253 lb-ft @ 5000 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	5 speed Automatic Transmission Relations Final Drive Ratio: 4.31


Acura TSX II 3.5i V6 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - EPA Highway (2008 - ):	8.4 L/100 km 34 MPG UK 28 MPG US

Fuel Consumption - Economy - EPA City (2008 - ):	12.4 L/100 km 23 MPG UK 19 MPG US

Fuel Consumption - Economy - EPA Combined (2008 - ):	10.2 L/100 km 28 MPG UK 23 MPG US

Range (EPA):	686 km / 426 miles

Fuel Tank Capacity :	70 L 18.5 US gallons 15.4 UK gallons

Emission standard :	LEV-2 ULEV Tier 2 Bin 5

Catalytic converter :	Yes, with Lamda-Sensor

Acura TSX II 3.5i V6 Performance

Top Speed :	- km/h / - Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Acura TSX II 3.5i V6 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	270.5 cm / 106.5 inches

Length :	471.5 cm / 185.63 inches

Width :	184.0 cm / 72.44 inches

Height :	144.0 cm / 56.69 inches

Front Axle :	158.1 cm / 62.24 inches

Rear Axle :	158.2 cm / 62.28 inches

Ground clearance :	15.0 cm / 5.91 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1669 kg / 3680 lbs

Weight/Power Output Ratio :	6 kg/hp


Acura TSX II 3.5i V6 Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	396 L / 14 cu-ft


Acura TSX II 3.5i V6 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (300 mm / 11.81 inches)

Rear Brakes - Disc dimensions :	Discs (282 mm / 11.1 inches)

Front Tyres - Rims dimensions :	235/45 R18

Rear Tyres - Rims dimensions :	235/45 R18

Steering :	Rack and pinion. PAS

Steering wheel lock-to-lock :	2.510 turns

Front Suspension :	Independent Double wishbone. Anti-roll bar (26.5 mm)

Rear Suspension :	Multi-link. Anti-roll bar (17.0 mm)

What engine is in Acura TSX II 3.5i V6?
The Acura TSX II 3.5i V6 has a V 6, Petrol engine with 3471 cm³ / 211.8 cu-in capacity.

How many horsepower (hp) does a 2011 Acura TSX II 3.5i V6 have?
The 2011 Acura TSX II 3.5i V6 has 280 PS / 276 bhp / 206 kW.

How much does a Acura TSX II 3.5i V6 weighs?
The Acura TSX II 3.5i V6 weighs 1669 Kg / 3680 lbs.

Is Acura TSX II 3.5i V6 All Wheel Drive (AWD)?
No, the Acura TSX II 3.5i V6 is not All Wheel Drive (AWD). It's Front Wheel Drive (FWD).
