Arkana 2024 Versions

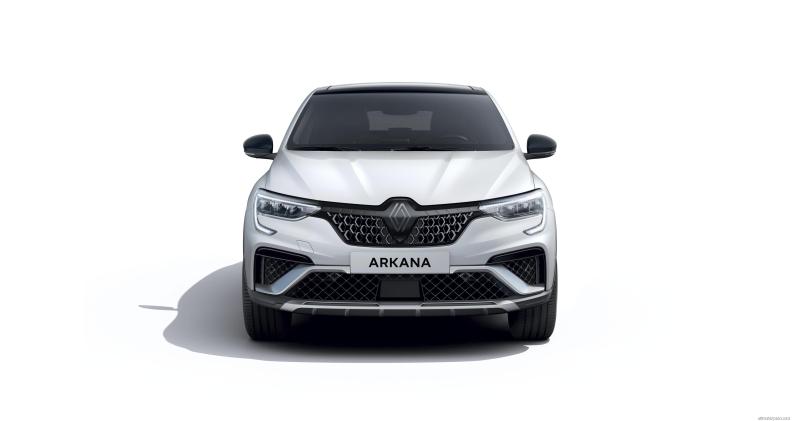

Renault Arkana 2024 E-Tech Full Hybrid 145 Specs

(2023 - ) - Technical Specifications for Years 2023, 2024

Hybrid / Petrol

1598 cm³
97.5 cu-in

Inline 4

143 PS
141 HP / 105 kW

205 Nm
151 lb-ft

172 km/h
107 Mph

4.7 L/100 km
60 MPG UK
50 MPG US

Renault Arkana 2024 E-Tech Full Hybrid 145 Body, Model and Production details

Generation :	Arkana (LJL) - 2024 Update

Body :	SUV

Num. of Doors :	5 doors


Renault Arkana 2024 E-Tech Full Hybrid 145 Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	Renault H4M 632

Fuel type :	Hybrid / Petrol

Fuel System :	Injection

Lubrication :	See oil information Renault Arkana 2024 E-Tech Full Hybrid 145 Oil Specifications - Engine oil All Weather: 5W30 OEM: Renault RN17 API/ACEA: ACEA C3 Engine oil capacity (with filter): 4.5 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	1598 cm³ / 97.5 cu-in

Bore x Stroke :	78 x 83.6 mm 3.07 x 3.29 inches

Number of valves :	16 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	10.8

Horsepower :	94 PS / 93 HP / 69 kW @ 5600 rpm

Maximum torque :	148 Nm / 109 lb-ft @ 3600 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Automatic


Renault Arkana 2024 E-Tech Full Hybrid 145 Electric Engines Technical Data

Total System Power :	143 PS / 141 HP / 105 kW

Total System Torque :	205 Nm / 151 lb-ft

Total electric power :	49 PS / 48 HP / 36 kW

Total electric torque :	205 Nm / 151 lb-ft

Number of electric engines:	1

Electric engine type:	PSM - Permanent Magnet Synchronous Motor

Transmission Electric Engine Power:	49 PS / 48 HP / 36 kW


Renault Arkana 2024 E-Tech Full Hybrid 145 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP:	4.5 L/100 km 63 MPG UK 52 MPG US

Fuel Consumption - Economy - Medium WLTP:	4.3 L/100 km 66 MPG UK 55 MPG US

Fuel Consumption - Economy - High WLTP:	4.2 L/100 km 67 MPG UK 56 MPG US

Fuel Consumption - Economy - Extra high WLTP:	5.4 L/100 km 52 MPG UK 44 MPG US

Fuel Consumption - Economy - Combined WLTP:	4.7 L/100 km 60 MPG UK 50 MPG US

Range (WLTP):	1063 km / 661 miles

Fuel Tank Capacity :	50 L 13.2 US gallons 11 UK gallons

Renault Arkana 2024 E-Tech Full Hybrid 145 Battery Technical Data, Charging and Range

Battery type :	Lithium-ion

Battery capacity :	1.3 kWh

Net battery capacity :	0.6 kWh

CO2 emissions WLTP :	106 g/km (Renault)

Emission standard :	Euro 6e

Catalytic converter :	Y

Renault Arkana 2024 E-Tech Full Hybrid 145 Performance

Top Speed :	172 km/h / 107 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	10.8 s


Renault Arkana 2024 E-Tech Full Hybrid 145 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	272.0 cm / 107.09 inches

Length :	456.8 cm / 179.84 inches

Width :	182.1 cm / 71.69 inches

Width with mirrors :	203.4 cm / 80.08 inches

Height :	157.6 cm / 62.05 inches

Front Axle :	156.2 cm / 61.5 inches

Rear Axle :	158.4 cm / 62.36 inches

Ground clearance :	20.0 cm / 7.87 inches

Max. Towing Capacity Weight :	760 kg / 1676 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1510 kg / 3329 lbs

Weight/Power Output Ratio :	10.6 kg/hp


Renault Arkana 2024 E-Tech Full Hybrid 145 Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	480 L / 17 cu-ft

Trunk / Boot First Row :	1263 L / 44.6 cu-ft


Renault Arkana 2024 E-Tech Full Hybrid 145 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (280 mm / 11.02 inches)

Rear Brakes - Disc dimensions :	Discs (260 mm / 10.24 inches)

Front Tyres - Rims dimensions :	215/55 R18

Rear Tyres - Rims dimensions :	215/55 R18

Turning circle :	11.2 m / 36.7 feet

Front Suspension :	McPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Torsion bar. Coil Springs.
