Tractors Specs > Mahindra > Mahindra 4500 4WD

Mahindra 4500 4WD similar models


Mahindra 4500 4WD Specs

(2001)

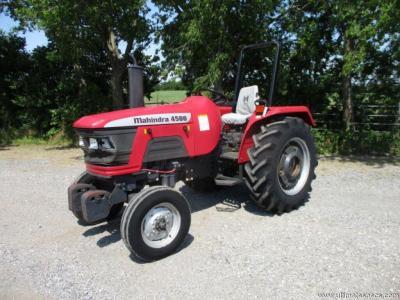

Mahindra 4500 4WD image
© Mahindra

Mahindra 4500 4WD General Information
Brand Mahindra
Model Mahindra 4500 4WD
Start year 2001
End year 2008
Category / Type Utility tractor
Distributor -
Manufacturer Mahindra
Factory Maharashtra, India
Serial Number Location -
Number of total built -
Original Price (in USD) -

Mahindra 4500 4WD Chassis, dimensions, weight and tires
Cabin Type Two-post folding ROPS.
Wheelbase - in
Length 145.4 in
Fuel Capacity -
Operating Weight - lbs
Front Tyres - Rims dimensions -
Rear Tyres - Rims dimensions -
Steering type hydrostatic power
Brakes type wet disc

Mahindra 4500 4WD Electrical System
Charging System -
Charging Voltage - volts
Ground negative
Charging Amperage - A
Number of batteries 1
Battery - voltage 12 volts
Battery - Amp / Hour 96 Ah
Battery - Cold Cranking Amperage - A
Battery - Group -
Engine Starter - voltage 12 v

Mahindra 4500 4WD Engine and Transmission Technical Data
Number of cylinders 3-cylinder
Fuel Type diesel
Engine Code Mahindra NE342
Engine size - Displacement - Engine capacity 146 ci
Bore x Stroke -
Compression Ratio 19.4:1
Maximum power - Output - Horsepower 42 hp @ 2100 rpm
Engine Cooling Type -
Engine Air Filter / Cleaner -
Transmission Type - synchomesh shuttle
Transmission / Gearbox gears 8 forward and reverse
Transmission Clutch -
Drive wheels - Traction - Drivetrain 4x4 MFWD 4WD (optional)

Mahindra 4500 4WD PTO - Power Take-Off
Rear PTO Type continuous (2WD)
Rear PTO Power (Tested) 35 hp ( - hp)
Rear PTO RPM 540/1000

Mahindra 4500 4WD Drawbar
Drawbar Power (Tested) - hp ( - hp)

Mahindra 4500 4WD Hydraulics
Type open center
Nº of valves 1
Pump flow 11 gpm
Steering flow - gpm
