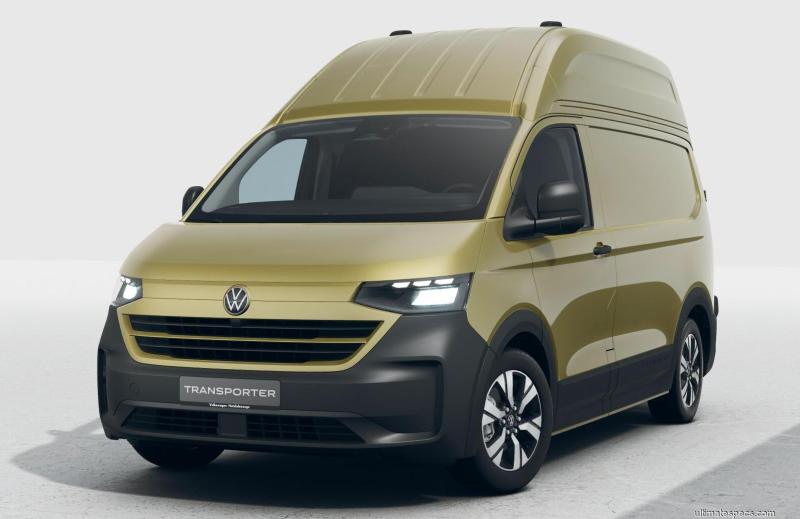

Volkswagen Transporter T7 Van LWB High-Roof PanAmericana 2.0 TDI 110HP Body, Model and Production details
|
|
| Generation : | Transporter T7 - 2025 New Model |
| Body : | Van |
| Num. of Doors : | 4 doors |
Volkswagen Transporter T7 Van LWB High-Roof PanAmericana 2.0 TDI 110HP Engine Technical Data
|
|
| Engine type - Number of cylinders : | Inline 4 |
| Engine Code : | Ford Diesel EcoBlue |
| Fuel type : | Diesel |
| Fuel System : | Common Rail |
| Lubrication : |
See oil information  Volkswagen Transporter T7 Van LWB High-Roof PanAmericana 2.0 TDI 110HP Oil Specifications - Engine oil All Weather: 0W30 OEM: WSS-M2C950-A API/ACEA: ACEA C2 Engine oil capacity (with filter): 8.3 L |
| Engine Alignment : | Transverse |
| Engine Position : | Front |
| Engine displacement : | 1995 cm3 / 121.7 cu-in |
| Bore x Stroke : |
84.01 x 90.03 mm 3.31 x 3.54 inches |
| Number of valves : | 16 Valves |
| Aspiration : | Turbo Intercooler |
| Compression Ratio : | 16.5 |
| Horsepower : |
110 PS / 109 HP / 81 kW @ 3500 rpm |
| Maximum torque : |
310 Nm / 228 lb-ft @ 1500-2500 rpm |
| Drive wheels - Traction - Drivetrain : | FWD |
| Transmission Gearbox - Number of speeds : |
6 speed Manual
|
Volkswagen Transporter T7 Van LWB High-Roof PanAmericana 2.0 TDI 110HP Fuel Consumption (Economy), Emissions and Range
|
|
| Fuel Consumption - Economy - Combined WLTP: |
7.1 L/100 km 40 MPG UK 33 MPG US |
| Range (WLTP): | 774 km / 481 miles |
| Fuel Tank Capacity : |
55 L 14.5 US gallons 12.1 UK gallons |
| AdBlue Tank : |
20 L 5.3 US gallons 4.4 UK gallons |
| CO2 emissions WLTP : | 187 g/km (Volkswagen) |
| Catalytic converter : | Particle Filter (with SCR cat.) |
Volkswagen Transporter T7 Van LWB High-Roof PanAmericana 2.0 TDI 110HP Performance
|
|
| Top Speed : | 155 km/h / 96 Mph |
| Acceleration 0 to 100 km/h (0 to 62 mph) : | 16.9 s |
Volkswagen Transporter T7 Van LWB High-Roof PanAmericana 2.0 TDI 110HP Size, Dimensions, Aerodynamics and Weight
|
|
| Wheelbase : | 350.0 cm / 137.8 inches |
| Length : | 545.0 cm / 214.57 inches |
| Width : | 203.2 cm / 80 inches |
| Width with mirrors : | 227.5 cm / 89.57 inches |
| Height : | 198.0 cm / 77.95 inches |
| Front Axle : | 172.5 cm / 67.91 inches |
| Rear Axle : | 171.6 cm / 67.56 inches |
| Cargo box inside length : | 300.2 cm / 118.19 inches |
| Max. width at wheelhouse : | 139.2 cm / 54.8 inches |
| Rear door width : | 140.0 cm / 55.12 inches |
| Rear door height : | 131.6 cm / 51.81 inches |
| Side door width : | 103.0 cm / 40.55 inches |
| Side door height : | 130.1 cm / 51.22 inches |
| Max. Towing Capacity Weight : | 2000 kg / 4409 lbs |
| Aerodynamic drag coefficient - Cx : | - |
| Curb Weight : | 1934 kg / 4264 lbs |
| Weight/Power Output Ratio : | 17.6 kg/hp |
Volkswagen Transporter T7 Van LWB High-Roof PanAmericana 2.0 TDI 110HP Interior size, Dimensions
|
|
| Num. of Seats : | 3 seats |
| Trunk / Boot capacity : | - |
Volkswagen Transporter T7 Van LWB High-Roof PanAmericana 2.0 TDI 110HP Brakes, Tires, Steering and Suspension
|
|||
| Front Brakes - Disc dimensions : |
Vented Discs (308 mm / 12.13 inches) |
||
| Rear Brakes - Disc dimensions : |
Vented Discs (304 mm / 11.97 inches) |
||
| Front Tyres - Rims dimensions : | 215/60 R17 | ||
| Rear Tyres - Rims dimensions : | 215/60 R17 | ||
| Turning circle : | 13.8 m / 45.3 feet | ||
| Front Suspension : | MacPherson struts. Coil springs. Anti-roll bar. | ||
| Rear Suspension : | Independent. Coil Springs. Anti-roll bar. | ||
