Crafter L4H3 (LWB High-Roof) Versions

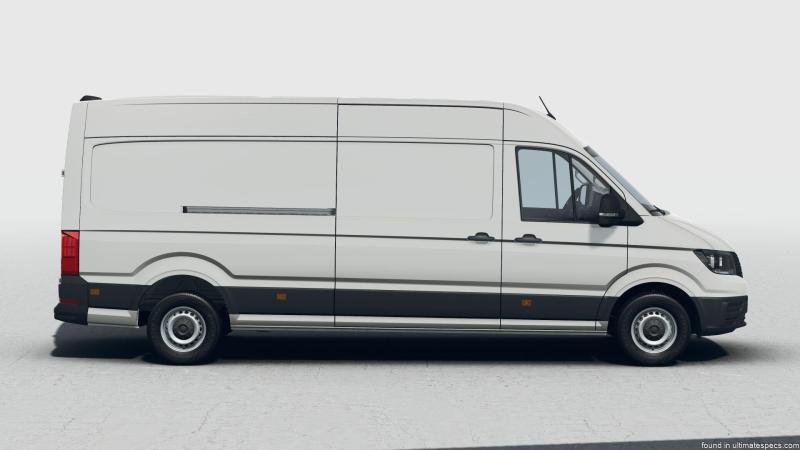

Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Specs

(2023 - ) - Technical Specifications for Years 2023, 2024, 2025

Diesel

1968 cm³
120.1 cu-in

Inline 4

163 PS
161 HP / 120 kW

410 Nm
302 lb-ft

164 km/h
102 Mph

12.6 L/100 km
22 MPG UK
19 MPG US

Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Body, Model and Production details

Generation :	2nd Gen. (Type SY/SZ)

Body :	Van

Num. of Doors :	4 doors


Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	DRE

Fuel type :	Diesel

Fuel System :	Common Rail

Lubrication :	See oil information Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Oil Specifications - Engine oil All Weather: 5W30 Engine oil capacity (with filter): 7.2 L

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine displacement :	1968 cm³ / 120.1 cu-in

Bore x Stroke :	81 x 95.5 mm 3.19 x 3.76 inches

Number of valves :	null Valves

Aspiration :	Turbo (TGV) Intercooler

Compression Ratio :	15.5

Horsepower :	163 PS / 161 HP / 120 kW @ 3600 rpm

Maximum torque :	410 Nm / 302 lb-ft @ 1500 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP:	12.7 L/100 km 22 MPG UK 19 MPG US

Fuel Consumption - Economy - Medium WLTP:	11 L/100 km 26 MPG UK 21 MPG US

Fuel Consumption - Economy - High WLTP:	11.1 L/100 km 25 MPG UK 21 MPG US

Fuel Consumption - Economy - Extra high WLTP:	14.8 L/100 km 19 MPG UK 16 MPG US

Fuel Consumption - Economy - Combined WLTP:	12.6 L/100 km 22 MPG UK 19 MPG US

Range (WLTP):	595 km / 370 miles

Fuel Tank Capacity :	75 L 19.8 US gallons 16.5 UK gallons

CO2 emissions WLTP :	330 g/km (Volkswagen)

Catalytic converter :	Particle Filter (with SCR cat.)

Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Performance

Top Speed :	164 km/h / 102 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Size, Dimensions, Aerodynamics and Weight

Wheelbase :	449.0 cm / 176.77 inches

Length :	683.6 cm / 269.13 inches

Width :	204.0 cm / 80.31 inches

Width with mirrors :	242.7 cm / 95.55 inches

Height :	259.0 cm / 101.97 inches

Ground clearance :	19.5 cm / 7.68 inches

Cargo box inside length :	430.0 cm / 169.29 inches

Cargo box inside height :	196.1 cm / 77.2 inches

Cargo width :	183.2 cm / 72.13 inches

Max. width at wheelhouse :	138.0 cm / 54.33 inches

Rear door width :	155.2 cm / 61.1 inches

Rear door height :	174.0 cm / 68.5 inches

Side door width :	131.1 cm / 51.61 inches

Side door height :	172.2 cm / 67.8 inches

Max. Towing Capacity Weight :	3500 kg / 7716 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2415 kg / 5324 lbs

Weight/Power Output Ratio :	14.8 kg/hp


Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Interior size, Dimensions

Num. of Seats :	3 seats

Trunk / Boot capacity :	14400 L / 508.5 cu-ft

Trunk / Boot First Row :	14400 L / 508.5 cu-ft


Volkswagen Crafter L4H3 (LWB High-Roof) 35 RWD 2.0 TDI 163HP Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (303 mm / 11.93 inches)

Rear Brakes - Disc dimensions :	Vented Discs (303 mm / 11.93 inches)

Front Tyres - Rims dimensions :	205/70 R16

Rear Tyres - Rims dimensions :	205/70 R16

Turning circle :	16.2 m / 53.1 feet

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Beam axle. Leaf springs. Anti-roll bar.
