Leon 4 Sportstourer Versions

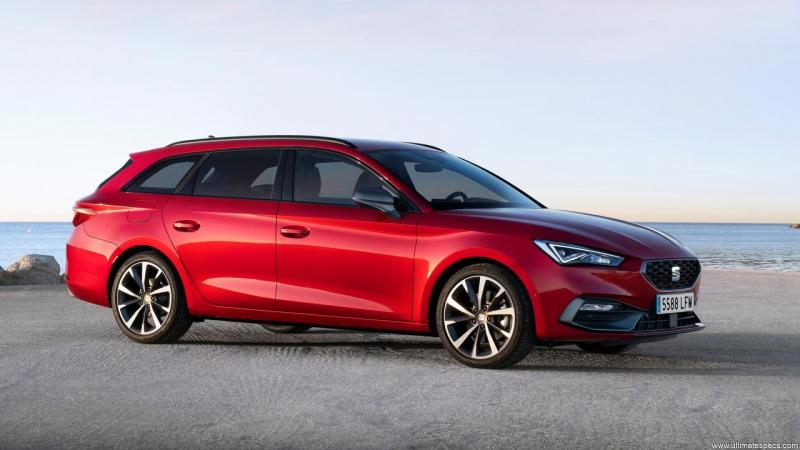

Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Specs

(2024 - ) - Technical Specifications for Years 2024, 2025

Mild Petrol

1498 cm³
91.4 cu-in

Inline 4

110 PS
109 HP / 81 kW

220 Nm
162 lb-ft

197 km/h
122 Mph

5.3 L/100 km
53 MPG UK
44 MPG US

Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Body, Model and Production details

Generation :	Leon 4 (KL)

Body :	Estate

Num. of Doors :	5 doors


Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	VW EA211 Evo DXD-Evo2

Fuel type :	Mild Petrol

Fuel System :	Direct Injection

Lubrication :	See oil information Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Oil Specifications - Engine oil All Weather: 0W20 OEM: VW 508.00 Engine oil capacity (with filter): 4.3 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	1498 cm³ / 91.4 cu-in

Bore x Stroke :	74.5 x 85.9 mm 2.93 x 3.38 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	12.5

Horsepower :	110 PS / 109 HP / 81 kW @ 5000 rpm

Maximum torque :	220 Nm / 162 lb-ft @ 1500-3000 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	7 speed Dualclutch Automatic


Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Electric Engines Technical Data

Total System Power :	110 PS / 109 HP / 81 kW

Total System Torque :	220 Nm / 162 lb-ft


Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined WLTP:	5.3 L/100 km 53 MPG UK 44 MPG US

Range (WLTP):	849 km / 528 miles

Fuel Tank Capacity :	45 L 11.9 US gallons 9.9 UK gallons

CO2 emissions WLTP :	122 g/km (Seat)

Emission standard :	Euro 6E

Catalytic converter :	Particle Filter

Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Performance

Top Speed :	197 km/h / 122 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	10.7 s


Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Size, Dimensions, Aerodynamics and Weight

Wheelbase :	268.6 cm / 105.75 inches

Length :	464.2 cm / 182.76 inches

Width :	179.9 cm / 70.83 inches

Width with mirrors :	199.1 cm / 78.39 inches

Height :	145.0 cm / 57.09 inches

Front Axle :	154.5 cm / 60.83 inches

Rear Axle :	151.6 cm / 59.69 inches

Max. Towing Capacity Weight :	1500 kg / 3307 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1416 kg / 3122 lbs

Weight/Power Output Ratio :	12.9 kg/hp


Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	620 L / 21.9 cu-ft

Trunk / Boot First Row :	1600 L / 56.5 cu-ft


Seat Leon 4 Sportstourer 1.5 eTSI 110HP DSG Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (288 mm / 11.34 inches)

Rear Brakes - Disc dimensions :	Discs (272 mm / 10.71 inches)

Front Tyres - Rims dimensions :	205/55 R16

Rear Tyres - Rims dimensions :	205/55 R16

Turning circle :	11.2 m / 36.7 feet

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Multi-link. Coil Springs. Anti-roll bar.
