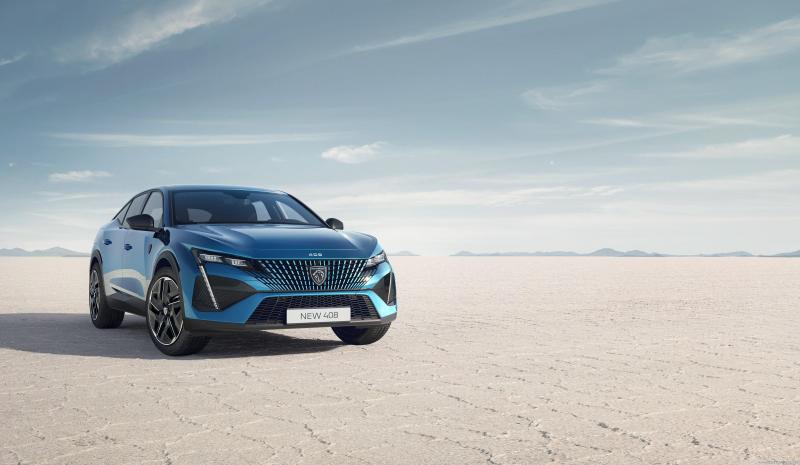

Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Specs

(2024 - ) - Technical Specifications for Years 2024, 2025

Plug-in Hybrid / Petrol

1598 cm³
97.5 cu-in

Inline 4

225 PS
222 HP / 165 kW

360 Nm
265 lb-ft

233 km/h
145 Mph

1.4 L/100 km
202 MPG UK
168 MPG US

Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Body, Model and Production details

Generation :	408

Body :	Crossover

Num. of Doors :	5 doors


Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	Stellantis EP6FADTXHPD

Fuel type :	Plug-in Hybrid / Petrol

Fuel System :	Direct Injection

Lubrication :	See oil information Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Oil Specifications - Engine oil All Weather: 0W30 OEM: PSA B71 2312 Engine oil capacity (with filter): 4.25 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	1598 cm³ / 97.5 cu-in

Bore x Stroke :	77.0 x 85.8 mm 3.03 x 3.38 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	10.2

Horsepower :	180 PS / 178 HP / 132 kW @ 6000 rpm

Maximum torque :	300 Nm / 221 lb-ft @ 1900 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	8 speed Automatic


Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Electric Engines Technical Data

Total System Power :	225 PS / 222 HP / 165 kW

Total System Torque :	360 Nm / 265 lb-ft

Total electric power :	110 PS / 109 HP / 81 kW

Total electric torque :	320 Nm / 236 lb-ft

Number of electric engines:	1

Transmission Electric Engine Power:	110 PS / 109 HP / 81 kW

Fuel Consumption - Economy - Combined WLTP:

1.4 L/100 km
202 MPG UK
168 MPG US

Fuel Tank Capacity :

40 L
10.6 US gallons
8.8 UK gallons

Range (WLTP):

63 km / 39 miles

Average energy consumption WLTP:

20.6 kWh / 100 km (3.02 miles / kWh)

Battery type :

Lithium-ion

Battery capacity :

12.4 kWh

Net battery capacity :

11.3 kWh

CO2 emissions WLTP :

31 g/km (Peugeot)

Emission standard :

Euro 6e

Catalytic converter :

Particle Filter

Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Performance

Top Speed :	233 km/h / 145 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	7.9 s


Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	278.7 cm / 109.72 inches

Length :	468.7 cm / 184.53 inches

Width :	184.8 cm / 72.76 inches

Width with mirrors :	206.2 cm / 81.18 inches

Height :	147.8 cm / 58.19 inches

Front Axle :	158.9 cm / 62.56 inches

Rear Axle :	160.4 cm / 63.15 inches

Max. Towing Capacity Weight :	1400 kg / 3086 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1781 kg / 3926 lbs

Weight/Power Output Ratio :	7.9 kg/hp


Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	471 L / 16.6 cu-ft

Trunk / Boot First Row :	1528 L / 54 cu-ft


Peugeot 408 1.6 Plug-In Hybrid 225 e-EAT8 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Discs (- mm / - inches)

Front Tyres - Rims dimensions :	205/55 R19

Rear Tyres - Rims dimensions :	205/55 R19

Turning circle :	11.2 m / 36.7 feet

Front Suspension :	Independent. MacPherson. Coil Springs.

Rear Suspension :	Coil Springs.
