Movano B 2010 L1H1 Van Versions

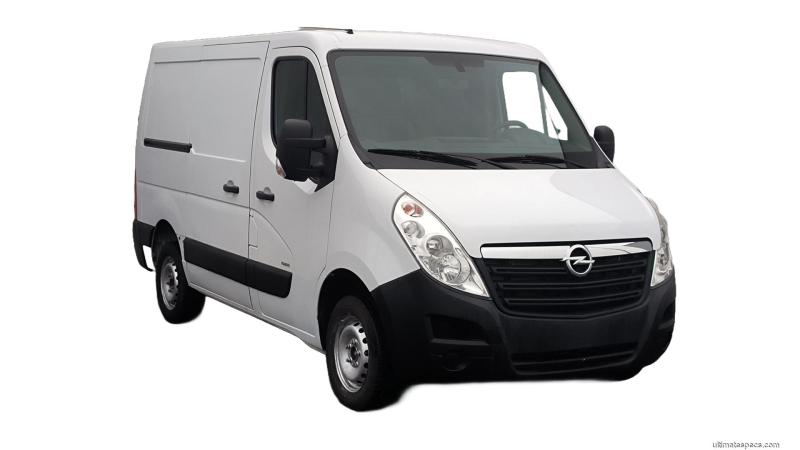

Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Specs

(2012 - 2016) - Technical Specifications for Years 2012, 2013, 2014, 2015, 2016

Diesel

2299 cm³
140.3 cu-in

Inline 4

125 PS
123 HP / 92 kW

310 Nm
228 lb-ft

143 km/h
89 Mph

Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Body, Model and Production details

Generation :	Movano B - 2010 New Model

Body :	Van

Num. of Doors :	3 doors


Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	M9T H8

Fuel type :	Diesel

Fuel System :	Common Rail

Lubrication :	See oil information Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Oil Specifications - Engine oil All Weather: 5W30 OEM: OPV 1547-D30 API/ACEA: A3 / B4 Engine oil capacity (with filter): 8.0 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	2299 cm³ / 140.3 cu-in

Bore x Stroke :	85.0 x 101.3 mm 3.35 x 3.99 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	16.0

Horsepower :	125 PS / 123 HP / 92 kW @ 3500 rpm

Maximum torque :	310 Nm / 228 lb-ft @ 1250 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	8.1 L/100 km 35 MPG UK 29 MPG US

Fuel Consumption - Economy - Open road NEDC :	7.1 L/100 km 40 MPG UK 33 MPG US

Fuel Consumption - Economy - Combined NEDC :	7.4 L/100 km 38 MPG UK 32 MPG US

Range :	1081 km / 672 miles

Fuel Tank Capacity :	80 L 21.1 US gallons 17.6 UK gallons

CO2 emissions :	197 g/km (Opel)

Catalytic converter :	Particle Filter

Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Performance

Top Speed :	143 km/h / 89 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Size, Dimensions, Aerodynamics and Weight

Wheelbase :	318.2 cm / 125.28 inches

Length :	504.8 cm / 198.74 inches

Width :	207.0 cm / 81.5 inches

Width with mirrors :	247.0 cm / 97.24 inches

Height :	230.7 cm / 90.83 inches

Front Axle :	175.0 cm / 68.9 inches

Rear Axle :	173.0 cm / 68.11 inches

Cargo box inside length :	258.3 cm / 101.69 inches

Cargo box inside height :	170.0 cm / 66.93 inches

Cargo width :	176.5 cm / 69.49 inches

Max. width at wheelhouse :	138.0 cm / 54.33 inches

Loading height :	56.3 cm / 22.17 inches

Rear door width :	157.7 cm / 62.09 inches

Rear door height :	162.7 cm / 64.06 inches

Side door width :	105.0 cm / 41.34 inches

Side door height :	158.1 cm / 62.24 inches

Max. Towing Capacity Weight :	2500 kg / 5512 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1886 kg / 4158 lbs

Weight/Power Output Ratio :	15.1 kg/hp


Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Interior size, Dimensions

Num. of Seats :	3 seats

Trunk / Boot capacity :	7800 L / 275.5 cu-ft

Trunk / Boot First Row :	7800 L / 275.5 cu-ft


Opel Movano B 2010 L1H1 Van 2.3 CDTI 125HP 3.3t Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (302 mm / 11.89 inches)

Rear Brakes - Disc dimensions :	Discs (305 mm / 12.01 inches)

Front Tyres - Rims dimensions :	215/65 R16

Rear Tyres - Rims dimensions :	215/65 R16

Turning circle :	12.5 m / 41 feet

Front Suspension :	MacPherson type with independent double wishbones, coil springs and telescopic dampers.

Rear Suspension :	Tubular axle with variablerate single leaf springs and telescopic dampers.
