Make

Movano B 2010 L2H3 Van Versions

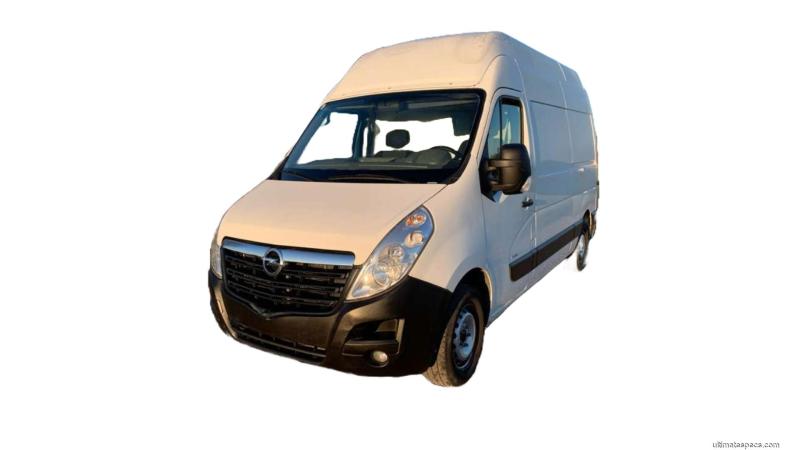

Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Specs

(2016 - 2019) - Technical Specifications for Years 2016, 2017, 2018, 2019

Diesel

2299 cm³
140.3 cu-in

Inline 4

110 PS
109 HP / 81 kW

290 Nm
213 lb-ft

140 km/h
87 Mph

Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Body, Model and Production details

Generation :	Movano B - 2010 New Model

Body :	Van

Num. of Doors :	3 doors


Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	M9T C7

Fuel type :	Diesel

Fuel System :	Common Rail

Lubrication :	See oil information Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Oil Specifications - Engine oil All Weather: 5W30 Engine oil capacity (with filter): 8.0 L

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	2299 cm³ / 140.3 cu-in

Bore x Stroke :	85.0 x 101.3 mm 3.35 x 3.99 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	16.0

Horsepower :	110 PS / 109 HP / 81 kW @ 3500 rpm

Maximum torque :	290 Nm / 213 lb-ft @ 1500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	8.8 L/100 km 32 MPG UK 27 MPG US

Fuel Consumption - Economy - Open road NEDC :	7 L/100 km 40 MPG UK 34 MPG US

Fuel Consumption - Economy - Combined NEDC :	7.7 L/100 km 37 MPG UK 31 MPG US

Range :	1038 km / 645 miles

Fuel Tank Capacity :	80 L 21.1 US gallons 17.6 UK gallons

CO2 emissions :	201 g/km (Opel)

Catalytic converter :	Particle Filter

Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Performance

Top Speed :	140 km/h / 87 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	- s


Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Size, Dimensions, Aerodynamics and Weight

Wheelbase :	368.2 cm / 144.96 inches

Length :	554.8 cm / 218.43 inches

Width :	207.0 cm / 81.5 inches

Width with mirrors :	247.0 cm / 97.24 inches

Height :	274.9 cm / 108.23 inches

Front Axle :	175.0 cm / 68.9 inches

Rear Axle :	173.0 cm / 68.11 inches

Cargo box inside length :	308.3 cm / 121.38 inches

Cargo box inside height :	214.4 cm / 84.41 inches

Cargo width :	176.5 cm / 69.49 inches

Max. width at wheelhouse :	138.0 cm / 54.33 inches

Loading height :	56.2 cm / 22.13 inches

Rear door width :	157.7 cm / 62.09 inches

Rear door height :	182.0 cm / 71.65 inches

Side door width :	127.0 cm / 50 inches

Side door height :	178.0 cm / 70.08 inches

Max. Towing Capacity Weight :	2500 kg / 5512 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	2050 kg / 4519 lbs

Weight/Power Output Ratio :	18.6 kg/hp


Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Interior size, Dimensions

Num. of Seats :	3 seats

Trunk / Boot capacity :	11700 L / 413.2 cu-ft

Trunk / Boot First Row :	11700 L / 413.2 cu-ft


Opel Movano B 2010 L2H3 Van 2.3 CDTI 110HP 3.5t Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (302 mm / 11.89 inches)

Rear Brakes - Disc dimensions :	Discs (305 mm / 12.01 inches)

Front Tyres - Rims dimensions :	225/65 R16

Rear Tyres - Rims dimensions :	225/65 R16

Turning circle :	14.1 m / 46.3 feet

Front Suspension :	MacPherson type with independent double wishbones, coil springs and telescopic dampers.

Rear Suspension :	Tubular axle with variablerate single leaf springs and telescopic dampers.
