626 III Versions

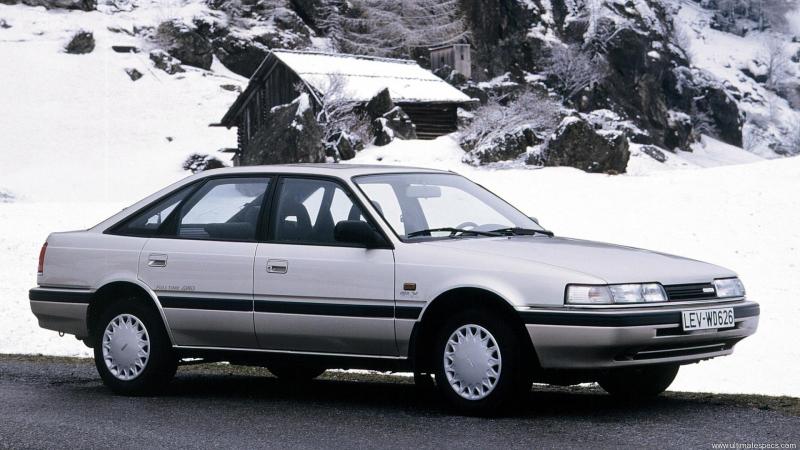

Mazda 626 III 1.8 Specs

(1990 - 1993) - Technical Specifications for Years 1990, 1991, 1992, 1993

Petrol

1789 cm³
109.2 cu-in

Inline 4

90 PS
89 HP / 66 kW

141 Nm
103 lb-ft

177 km/h
110 Mph

8.2 L/100 km
34 MPG UK
29 MPG US

Mazda 626 III 1.8 Body, Model and Production details

Body :	-

Num. of Doors :	5 doors


Mazda 626 III 1.8 Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Petrol

Fuel System :	Carburetor

Engine Alignment :	Transverse

Engine displacement :	1789 cm³ / 109.2 cu-in

Bore x Stroke :	86.0 x 77.0 mm 3.39 x 3.03 inches

Number of valves :	12 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	9.5

Horsepower :	90 PS / 89 HP / 66 kW @ 5400 rpm

Maximum torque :	141 Nm / 103 lb-ft @ 3500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	5 speed Manual


Mazda 626 III 1.8 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined:	8.2 L/100 km 34 MPG UK 29 MPG US

Range :	731 km / 454 miles

Fuel Tank Capacity :	60 L 15.9 US gallons 13.2 UK gallons


Mazda 626 III 1.8 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	258.0 cm / 101.57 inches

Length :	452.0 cm / 177.95 inches

Width :	169.0 cm / 66.54 inches

Height :	141.0 cm / 55.51 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1070 kg / 2359 lbs

Weight/Power Output Ratio :	11.9 kg/hp


Mazda 626 III 1.8 Interior size, Dimensions

Trunk / Boot capacity :	467 L / 16.5 cu-ft


Mazda 626 III 1.8 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Drums (- mm / - inches)

Front Tyres - Rims dimensions :	165/- R13

Rear Tyres - Rims dimensions :	165/- R13

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Multi-link. Coil Springs. Anti-roll bar
