Make

CX-5 (KE 2015) Versions

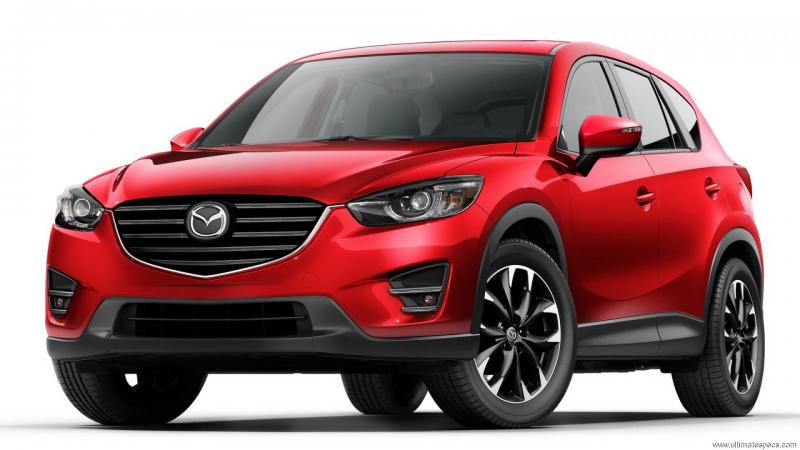

Mazda CX-5 (KE 2015) Luxury 2.2 D 150HP 4WD Specs

(2015 - 2017) - Technical Specifications for Years 2015, 2016, 2017

Diesel

2191 cm³
133.7 cu-in

Inline 4

150 PS
148 HP / 110 kW

380 Nm
280 lb-ft

197 km/h
122 Mph

Mazda CX-5 (KE 2015) Luxury 2.2 D 150HP 4WD Body, Model and Production details

Generation :	CX-5 (KE)

Body :	TT

Num. of Doors :	5 doors


Mazda CX-5 (KE 2015) Luxury 2.2 D 150HP 4WD Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Diesel

Fuel System :	Direct Injection.

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	2191 cm³ / 133.7 cu-in

Bore x Stroke :	86.0 x 94.3 mm 3.39 x 3.71 inches

Number of valves :	16 Valves

Aspiration :	Turbo (TGV) + Intercooler

Compression Ratio :	14.0

Horsepower :	150 PS / 148 HP / 110 kW @ 4500 rpm

Maximum torque :	380 Nm / 280 lb-ft @ 1800-2600 rpm

Drive wheels - Traction - Drivetrain :	AWD

Transmission Gearbox - Number of speeds :	6 speed Manual Transmission Relations 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: 6th Gear Ratio:

Clutch Type :	Dry single disc clutch


Mazda CX-5 (KE 2015) Luxury 2.2 D 150HP 4WD Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	6 L/100 km 47 MPG UK 39 MPG US

Fuel Consumption - Economy - Open road NEDC :	4.7 L/100 km 60 MPG UK 50 MPG US

Fuel Consumption - Economy - Combined NEDC :	5.2 L/100 km 54 MPG UK 45 MPG US

Range :	1115 km / 693 miles

Fuel Tank Capacity :	58 L 15.3 US gallons 12.8 UK gallons

CO2 emissions :	136 g/km (Mazda)

Emission standard :	Euro VI

Mazda CX-5 (KE 2015) Luxury 2.2 D 150HP 4WD Performance

Top Speed :	197 km/h / 122 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	9.4 s


Mazda CX-5 (KE 2015) Luxury 2.2 D 150HP 4WD Size, Dimensions, Aerodynamics and Weight

Wheelbase :	270.0 cm / 106.3 inches

Length :	455.5 cm / 179.33 inches

Width :	184.0 cm / 72.44 inches

Height :	167.0 cm / 65.75 inches

Front Axle :	158.5 cm / 62.4 inches

Rear Axle :	159.0 cm / 62.6 inches

Ground clearance :	21.0 cm / 8.27 inches

Approach angle (deg) :	18.6°

Breakover (Rampover) angle (deg) :	18.6°

Departure angle (deg) :	24.4°

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1555 kg / 3428 lbs

Weight/Power Output Ratio :	10.4 kg/hp


Mazda CX-5 (KE 2015) Luxury 2.2 D 150HP 4WD Interior size, Dimensions

Num. of Seats :	5 seats

Seat distribution :	2+3

Trunk / Boot capacity :	463 L / 16.4 cu-ft

Trunk / Boot First Row :	1620 L / 57.2 cu-ft


Mazda CX-5 (KE 2015) Luxury 2.2 D 150HP 4WD Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (297 mm / 11.69 inches)

Rear Brakes - Disc dimensions :	Discs (303 mm / 11.93 inches)

Front Tyres - Rims dimensions :	225/55 R19

Rear Tyres - Rims dimensions :	225/55 R19

Front Wheels Width :	7.0"

Rear Wheels Width :	7.0"

Steering :	Rack and pinion Electric

Steering ratio :	15.5

Front Suspension :	MacPherson struts. Coil springs.

Rear Suspension :	Coil Springs.
