Make

MX 5 Miata (NC3) Versions

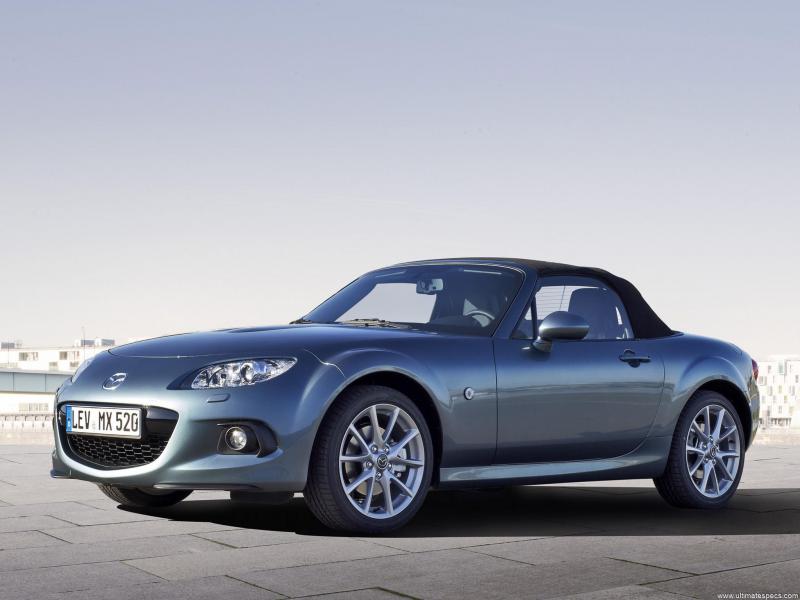

Mazda MX 5 Miata (NC3) 2.0 Luxury Specs

(2013 - 2015) - Technical Specifications for Years 2013, 2014, 2015

Petrol

1999 cm³
122 cu-in

Inline 4

160 PS
158 HP / 118 kW

188 Nm
138 lb-ft

218 km/h
135 Mph

Mazda MX 5 Miata (NC3) 2.0 Luxury Body, Model and Production details

Generation :	MX-5 / Miata 3rd Gen. (NC3) - 2012 Update

Body :	Cabrio

Num. of Doors :	2 doors


Mazda MX 5 Miata (NC3) 2.0 Luxury Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Petrol

Fuel System :	Indirect Injection. Variable Intake

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine displacement :	1999 cm³ / 122 cu-in

Bore x Stroke :	87.5 x 83.1 mm 3.44 x 3.27 inches

Number of valves :	16 Valves

Aspiration :	naturally-aspirated

Compression Ratio :	10.8

Horsepower :	160 PS / 158 HP / 118 kW @ 7000 rpm

Maximum torque :	188 Nm / 138 lb-ft @ 5000 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	6 speed Manual


Mazda MX 5 Miata (NC3) 2.0 Luxury Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	10.9 L/100 km 26 MPG UK 22 MPG US

Fuel Consumption - Economy - Open road NEDC :	6.1 L/100 km 46 MPG UK 39 MPG US

Fuel Consumption - Economy - Combined NEDC :	7.8 L/100 km 36 MPG UK 30 MPG US

Range :	641 km / 398 miles

Fuel Tank Capacity :	50 L 13.2 US gallons 11 UK gallons

CO2 emissions :	181 g/km (Mazda)

Emission standard :	Euro V

Mazda MX 5 Miata (NC3) 2.0 Luxury Performance

Top Speed :	218 km/h / 135 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	7.9 s


Mazda MX 5 Miata (NC3) 2.0 Luxury Size, Dimensions, Aerodynamics and Weight

Wheelbase :	233.0 cm / 91.73 inches

Length :	399.5 cm / 157.28 inches

Width :	172.0 cm / 67.72 inches

Height :	125.5 cm / 49.41 inches

Front Axle :	149.0 cm / 58.66 inches

Rear Axle :	149.5 cm / 58.86 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1165 kg / 2568 lbs

Weight/Power Output Ratio :	7.3 kg/hp


Mazda MX 5 Miata (NC3) 2.0 Luxury Interior size, Dimensions

Num. of Seats :	2 seats

Seat distribution :	2

Trunk / Boot capacity :	150 L / 5.3 cu-ft


Mazda MX 5 Miata (NC3) 2.0 Luxury Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (290 mm / 11.42 inches)

Rear Brakes - Disc dimensions :	Discs (280 mm / 11.02 inches)

Front Tyres - Rims dimensions :	205/45 R17

Rear Tyres - Rims dimensions :	205/45 R17

Front Wheels Width :	7.0"

Rear Wheels Width :	7.0"

Steering :	Rack and pinion Hydraulic

Turning circle :	10.0 m / 32.8 feet

Steering wheel lock-to-lock :	2.6 turns

Front Suspension :	Coil springs.

Rear Suspension :	Coil Springs.
