Lexus NX (AZ20) 450h+ E-FOUR Body, Model and Production details
|
|
| Generation : | NX (AZ20) - 2022 New Model |
| Body : | SUV |
| Num. of Doors : | 5 doors |
Lexus NX (AZ20) 450h+ E-FOUR Engine Technical Data
|
|
| Engine type - Number of cylinders : | Inline 4 |
| Engine Code : | A25A-FXS |
| Fuel type : | Plug-in Hybrid / Petrol |
| Fuel System : | Injection |
| Lubrication : |
See oil information  Lexus NX (AZ20) 450h+ E-FOUR Oil Specifications - Engine oil All Weather: 0W16 API/ACEA: API SN/RC Engine oil capacity (with filter): 4.5 L |
| Engine Alignment : | Transverse |
| Engine Position : | Front |
| Engine displacement : | 2487 cm3 / 151.8 cu-in |
| Bore x Stroke : |
87.5 x 103.4 mm 3.44 x 4.07 inches |
| Number of valves : | 16 Valves |
| Aspiration : | naturally-aspirated |
| Compression Ratio : | 14.0 |
| Horsepower : |
185 PS / 182 HP / 136 kW @ 6000 rpm |
| Maximum torque : |
227 Nm / 167 lb-ft @ 3200-3700 rpm |
| Drive wheels - Traction - Drivetrain : | AWD |
| Transmission Gearbox - Number of speeds : |
1 speed CVT
|
Lexus NX (AZ20) 450h+ E-FOUR Electric Engines Technical Data
|
|
| Total System Power : | 309 PS / 305 HP / 227 kW |
| Total System Torque : | - Nm / - lb-ft |
| Total electric power : | 236 PS / 233 HP / 174 kW |
| Total electric torque : | 391 Nm / 288 lb-ft |
| Number of electric engines: | 2 |
| Electric engine type: | SSM - Separately Excited Synchronous Motor |
| Transmission Electric Engine Power: | 182 PS / 180 HP / 134 kW |
| Electric engine 2 type: | SSM - Separately Excited Synchronous Motor |
| Rear Axle Electric Engine Power: | 54 PS / 53 HP / 40 kW |
Lexus NX (AZ20) 450h+ E-FOUR Fuel Consumption (Economy), Emissions and Range
|
|||||||||
| Fuel Consumption - Economy - Combined WLTP: |
1 L/100 km 282 MPG UK 235 MPG US |
||||||||
| Fuel Tank Capacity : |
55 L 14.5 US gallons 12.1 UK gallons |
||||||||
 Lexus NX (AZ20) 450h+ E-FOUR Battery Technical Data, Charging and Range
|
|||||||||
| Range (WLTP): | 68 km / 42 miles | ||||||||
| Average energy consumption WLTP: | 17.2 kWh / 100 km (3.61 miles / kWh) | ||||||||
| Battery type : | Lithium-ion | ||||||||
|
|||||||||
| Battery capacity : | 18.1 kWh | ||||||||
| CO2 emissions WLTP : | 22 g/km (Lexus) | ||||||||
| Emission standard : | Euro 6e | ||||||||
| Catalytic converter : | Y | ||||||||
Lexus NX (AZ20) 450h+ E-FOUR Performance
|
|
| Top Speed : | 200 km/h / 124 Mph |
| Acceleration 0 to 100 km/h (0 to 62 mph) : | 6.3 s |
Lexus NX (AZ20) 450h+ E-FOUR Size, Dimensions, Aerodynamics and Weight
|
|
| Wheelbase : | 269.0 cm / 105.91 inches |
| Length : | 466.0 cm / 183.46 inches |
| Width : | 186.5 cm / 73.43 inches |
| Width with mirrors : | 215.0 cm / 84.65 inches |
| Height : | 167.0 cm / 65.75 inches |
| Front Axle : | 160.5 cm / 63.19 inches |
| Rear Axle : | 162.5 cm / 63.98 inches |
| Ground clearance : | 18.5 cm / 7.28 inches |
| Approach angle (deg) : | 16.0° |
| Departure angle (deg) : | 25.0° |
| Max. Towing Capacity Weight : | 1500 kg / 3307 lbs |
| Aerodynamic drag coefficient - Cx : | 0.35 |
| Curb Weight : | 2065 kg / 4553 lbs |
| Weight/Power Output Ratio : | 6.7 kg/hp |
Lexus NX (AZ20) 450h+ E-FOUR Interior size, Dimensions
|
|
| Num. of Seats : | 5 seats |
| Trunk / Boot capacity : | 545 L / 19.2 cu-ft |
| Trunk / Boot First Row : | 1436 L / 50.7 cu-ft |
Lexus NX (AZ20) 450h+ E-FOUR Brakes, Tires, Steering and Suspension
|
|||
| Front Brakes - Disc dimensions : |
Vented Discs (340 mm / 13.39 inches) |
||
| Rear Brakes - Disc dimensions : |
Discs (317 mm / 12.48 inches) |
||
| Front Tyres - Rims dimensions : | 235/60 R18 | ||
| Rear Tyres - Rims dimensions : | 235/60 R18 | ||
| Turning circle : | 12.4 m / 40.7 feet | ||
| Front Suspension : | Independent. MacPherson. Coil Springs. Anti-roll bar. | ||
| Rear Suspension : | Multi-link. Coil Springs. Anti-roll bar. | ||

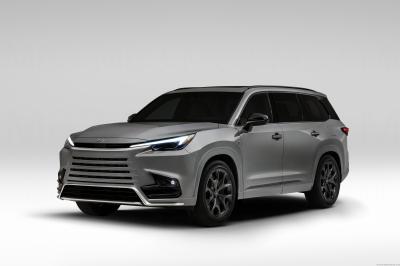

2023 Lexus TX 350 AWD
2025 Mercedes Benz H247 GLA 2023 45 S AMG 4MATIC SPEEDSHIFT DCT 8G
2025 Maxus eDeliver 7 L2H1 88 kWh AWD
2025 Mercedes Benz X254 GLC 200 4MATIC 9G-TRONIC2025 Mercedes Benz X254 GLC 300 4MATIC 9G-TRONIC-22.jpg){kind=small}
2024 Lexus NX (AZ20) 350h2024 Lexus NX (AZ20) 350h E-FOUR2024 Lexus NX (AZ20) 450h+ E-FOUR-b1c45d2bf1ccf78c09.jpg){kind=small}

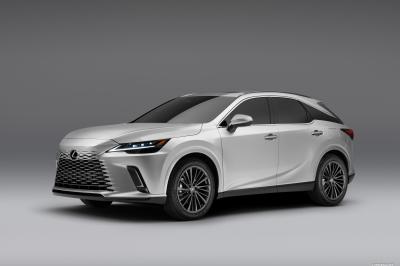

2023 Lexus RX (AL30) 350h AWD CVT
