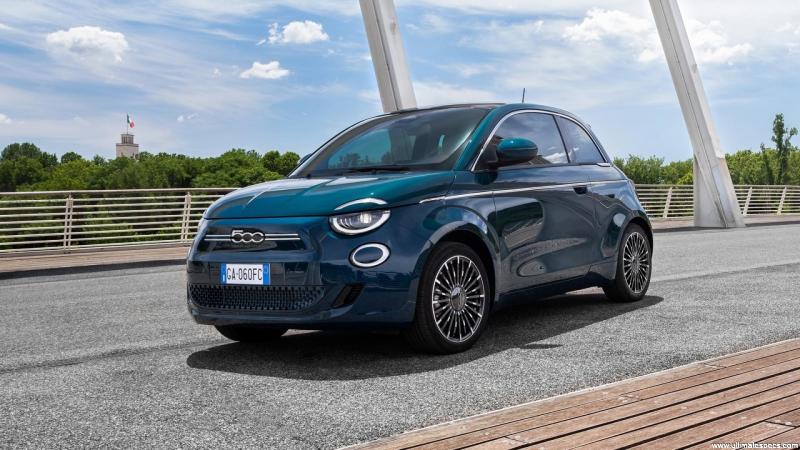

Fiat 500 2021 500e 3+1 23.8kWh Specs

(2024 - ) - Technical Specifications for Years 2024, 2025

Electric

95 PS
94 HP / 70 kW

220 Nm
162 lb-ft

135 km/h
84 Mph

190 km
118 miles

Fiat 500 2021 500e 3+1 23.8kWh Body, Model and Production details

Generation :	500 - 2021 New Model

Body :	Hatchback

Num. of Doors :	4 doors


Fiat 500 2021 500e 3+1 23.8kWh Engine Technical Data

Engine Type :	Electric

Total electric power :	95 PS / 94 HP / 70 kW

Total electric torque :	220 Nm / 162 lb-ft

Horsepower :	95 PS / 94 HP / 70 kW

Maximum torque :	220 Nm / 162 lb-ft

Number of electric engines:	1

Electric engine 1 type:	PSM - Permanent Magnet Synchronous Motor

Front Axle Electric Engine Power:	95 PS / 94 HP / 70 kW

Front Axle Electric Engine Torque:	220 Nm / 162 lb-ft

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	1 speed Reduction Gear

Range (WLTP):

190 km / 118 miles

Average energy consumption WLTP:

13 kWh / 100 km (4.78 miles / kWh)

Battery type :

Lithium-ion

Fast charge current :

50.0 kW

Battery capacity :

23.8 kWh

Net battery capacity :

21.3 kWh


Fiat 500 2021 500e 3+1 23.8kWh Size, Dimensions, Aerodynamics and Weight

Wheelbase :	232.2 cm / 91.42 inches

Length :	363.2 cm / 142.99 inches

Width :	168.3 cm / 66.26 inches

Width with mirrors :	190.0 cm / 74.8 inches

Height :	152.7 cm / 60.12 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1330 kg / 2932 lbs

Weight/Power Output Ratio :	14 kg/hp


Fiat 500 2021 500e 3+1 23.8kWh Interior size, Dimensions

Num. of Seats :	4 seats

Trunk / Boot capacity :	185 L / 6.5 cu-ft

Trunk / Boot First Row :	550 L / 19.4 cu-ft


Fiat 500 2021 500e 3+1 23.8kWh Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (281 mm / 11.06 inches)

Rear Brakes - Disc dimensions :	Drums (203 mm / 7.99 inches)

Front Tyres - Rims dimensions :	195/55 R16

Rear Tyres - Rims dimensions :	195/55 R16

Turning circle :	9.7 m / 31.8 feet

Front Suspension :	Independent. MacPherson. Coil Springs.

Rear Suspension :	Torsion beam. Coil Springs.
