Generation : | Ducato (X290) - 2024 Update |
Body : | Van |
Num. of Doors : | 4 doors |
![]() |
|
Engine type - Number of cylinders : | Inline 4 |
Engine Code : | Fiat 2.2 Multijet3 - Euro6d |
Fuel type : | Diesel |
Fuel System : | Common Rail |
Lubrication : |
See oil information ![]() Fiat Ducato L2H1 2024 30 120 Multijet3 Oil Specifications - Engine oil All Weather: 0W30 OEM: Fiat 9.55535-DS1 API/ACEA: ACEA C2 Engine oil capacity (with filter): 6.3 L |
Engine Alignment : | Transverse |
Engine Position : | Front |
Engine displacement : | 2184 cm3 / 133.3 cu-in |
Bore x Stroke : |
83.8 x 99 mm 3.3 x 3.9 inches |
Number of valves : | 16 Valves |
Aspiration : | Turbo Intercooler |
Compression Ratio : | 15.5 |
Horsepower : |
120 PS / 118 HP / 88 kW @ 3500 rpm |
Maximum torque : |
320 Nm / 236 lb-ft @ 1400-2500 rpm |
Drive wheels - Traction - Drivetrain : | FWD |
Transmission Gearbox - Number of speeds : |
6 speed Manual
|
![]() |
|
Fuel Consumption - Economy - Combined WLTP: |
7.6 L/100 km 37 MPG UK 31 MPG US |
Range (WLTP): | 1184 km / 736 miles |
Fuel Tank Capacity : |
90 L 23.8 US gallons 19.8 UK gallons |
AdBlue Tank : |
19 L 5 US gallons 4.2 UK gallons |
CO2 emissions WLTP : | 148 g/km (Fiat) |
Catalytic converter : | Particle Filter (with SCR cat.) |
![]() |
|
Top Speed : | 148 km/h / 92 Mph |
Acceleration 0 to 100 km/h (0 to 62 mph) : | - s |
![]() |
|

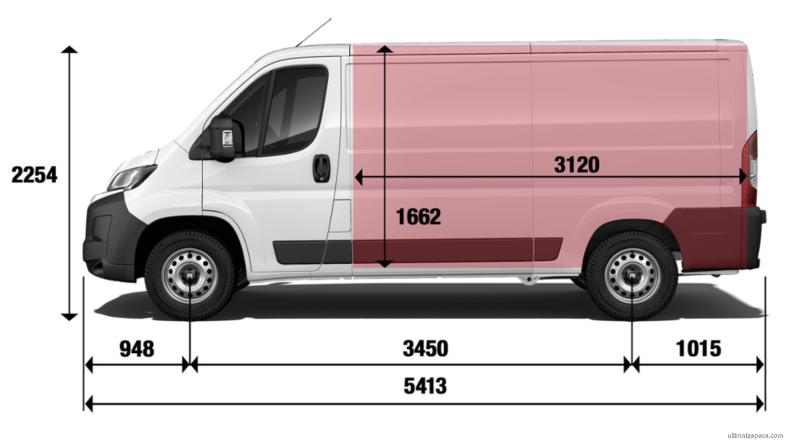

Wheelbase : | 345.0 cm / 135.83 inches |
Length : | 541.3 cm / 213.11 inches |
Width : | 205.0 cm / 80.71 inches |
Height : | 225.4 cm / 88.74 inches |
Front Axle : | 181.0 cm / 71.26 inches |
Rear Axle : | 179.0 cm / 70.47 inches |
Ground clearance : | 16.2 cm / 6.38 inches |
Cargo box inside length : | 312.0 cm / 122.83 inches |
Cargo box inside height : | 162.2 cm / 63.86 inches |
Cargo width : | 187.0 cm / 73.62 inches |
Max. width at wheelhouse : | 142.2 cm / 55.98 inches |
Loading height : | 53.5 cm / 21.06 inches |
Rear door width : | 156.2 cm / 61.5 inches |
Rear door height : | 152.0 cm / 59.84 inches |
Side door width : | 125.0 cm / 49.21 inches |
Side door height : | 148.5 cm / 58.46 inches |
Max. Towing Capacity Weight : | 2000 kg / 4409 lbs |
Aerodynamic drag coefficient - Cx : | - |
Curb Weight : | 2075 kg / 4575 lbs |
Weight/Power Output Ratio : | 17.3 kg/hp |
![]() |
|
Num. of Seats : | 3 seats |
Trunk / Boot capacity : | 10000 L / 353.1 cu-ft |
Trunk / Boot First Row : | 10000 L / 353.1 cu-ft |
![]() |
|||
Front Brakes - Disc dimensions : |
Vented Discs (280 mm / 11.02 inches) |
||
Rear Brakes - Disc dimensions : |
Discs (280 mm / 11.02 inches) |
||
Front Tyres - Rims dimensions : | 215/70 R15 | ||
Rear Tyres - Rims dimensions : | 215/70 R15 | ||
Turning circle : | 12.5 m / 41 feet | ||
Front Suspension : | Independent. MacPherson. Coil Springs. Anti-roll bar. | ||
Rear Suspension : | Torsion Bar. Leaf Springs. |
