Make

U06 2 Series Active Tourer Versions

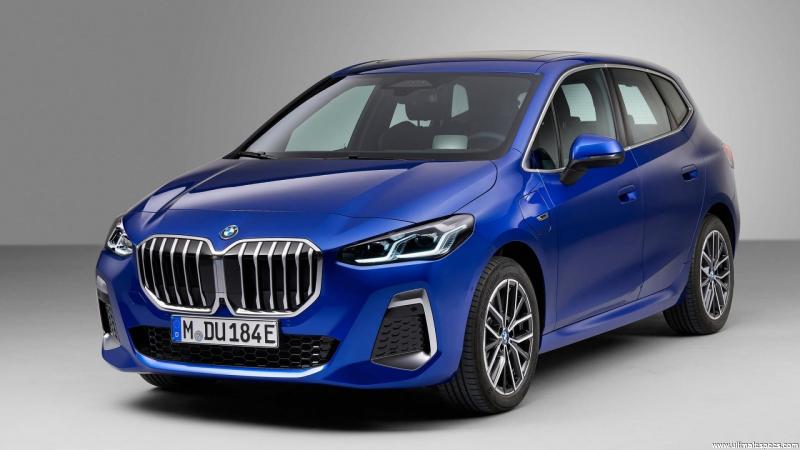

BMW U06 2 Series Active Tourer 223i Specs

(2022 - 2024) - Technical Specifications for Years 2022, 2023, 2024

Petrol

1998 cm³
121.9 cu-in

Inline 4

204 PS
201 HP / 150 kW

320 Nm
236 lb-ft

241 km/h
150 Mph

6 L/100 km
47 MPG UK
39 MPG US

BMW U06 2 Series Active Tourer 223i Body, Model and Production details

Generation :	F44 / G42 / U06

Body :	MPV

Num. of Doors :	5 doors


BMW U06 2 Series Active Tourer 223i Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Petrol

Fuel System :	Direct Injection

Engine Alignment :	Transverse

Engine Position :	Front

Engine displacement :	1998 cm³ / 121.9 cu-in

Bore x Stroke :	82.0 x 94.6 mm 3.23 x 3.72 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	11.0

Horsepower :	204 PS / 201 HP / 150 kW @ 5000 rpm

Maximum torque :	320 Nm / 236 lb-ft @ 1500 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	7 speed Dualclutch Automatic


BMW U06 2 Series Active Tourer 223i Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined WLTP:	6 L/100 km 47 MPG UK 39 MPG US

Range (WLTP):	750 km / 466 miles

Fuel Tank Capacity :	45 L 11.9 US gallons 9.9 UK gallons

CO2 emissions WLTP :	137 g/km (BMW)

Catalytic converter :	Y

BMW U06 2 Series Active Tourer 223i Performance

Top Speed :	241 km/h / 150 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	7.0 s


BMW U06 2 Series Active Tourer 223i Size, Dimensions, Aerodynamics and Weight

Wheelbase :	267.0 cm / 105.12 inches

Length :	438.6 cm / 172.68 inches

Width :	182.4 cm / 71.81 inches

Width with mirrors :	210.2 cm / 82.76 inches

Height :	157.6 cm / 62.05 inches

Front Axle :	158.6 cm / 62.44 inches

Rear Axle :	158.7 cm / 62.48 inches

Ground clearance :	17.1 cm / 6.73 inches

Max. Towing Capacity Weight :	1500 kg / 3307 lbs

Aerodynamic drag coefficient - Cx :	0.26

Curb Weight :	1624 kg / 3580 lbs

Dry Weight :	1520 kg / 3351 lbs

Weight/Power Output Ratio :	8 kg/hp


BMW U06 2 Series Active Tourer 223i Interior size, Dimensions

Num. of Seats :	5 seats

Trunk / Boot capacity :	from 415 L / 14.7 cu-ft


BMW U06 2 Series Active Tourer 223i Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Discs (- mm / - inches)

Front Tyres - Rims dimensions :	205/60 R17

Rear Tyres - Rims dimensions :	205/60 R17

Turning circle :	11.4 m / 37.4 feet

Front Suspension :	Independent. MacPherson. Coil Springs. Anti-roll bar.

Rear Suspension :	Multi-link. Coil Springs. Anti-roll bar.
