Make

A4 (B9) Avant Versions

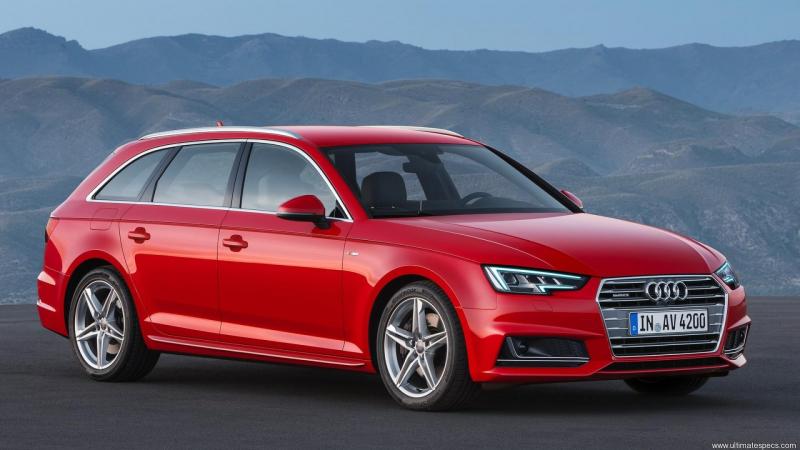

Audi A4 (B9) Avant 2.0 TDI 190HP Stronic Specs

(2015 - 2018) - Technical Specifications for Years 2015, 2016, 2017, 2018

Diesel

1968 cm³
120.1 cu-in

Inline 4

190 PS
187 HP / 140 kW

400 Nm
295 lb-ft

231 km/h
144 Mph

Audi A4 (B9) Avant 2.0 TDI 190HP Stronic Body, Model and Production details

Generation :	Type B9

Body :	Estate

Num. of Doors :	5 doors


Audi A4 (B9) Avant 2.0 TDI 190HP Stronic Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	-

Fuel type :	Diesel

Fuel System :	Direct Injection. Variable Intake

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine displacement :	1968 cm³ / 120.1 cu-in

Bore x Stroke :	81.0 x 95.5 mm 3.19 x 3.76 inches

Number of valves :	16 Valves

Aspiration :	Turbo (TGV) + Intercooler

Compression Ratio :	15.5

Horsepower :	190 PS / 187 HP / 140 kW @ 3800-4200 rpm

Maximum torque :	400 Nm / 295 lb-ft @ 1750-3000 rpm

Drive wheels - Traction - Drivetrain :	FWD

Transmission Gearbox - Number of speeds :	7 speed Automatic Transmission Relations 1st Gear Ratio: 2nd Gear Ratio: 3rd Gear Ratio: 4th Gear Ratio: 5th Gear Ratio: 6th Gear Ratio: 7th Gear Ratio: Reverse Gear Ratio: 10.8


Audi A4 (B9) Avant 2.0 TDI 190HP Stronic Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - City NEDC :	4.9 L/100 km 58 MPG UK 48 MPG US

Fuel Consumption - Economy - Open road NEDC :	3.8 L/100 km 74 MPG UK 62 MPG US

Fuel Consumption - Economy - Combined NEDC :	4.2 L/100 km 67 MPG UK 56 MPG US

Range :	952 km / 592 miles

Fuel Tank Capacity :	40 L 10.6 US gallons 8.8 UK gallons

CO2 emissions :	109 g/km (Audi)

Emission standard :	Euro VI

Audi A4 (B9) Avant 2.0 TDI 190HP Stronic Performance

Top Speed :	231 km/h / 144 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	7.9 s


Audi A4 (B9) Avant 2.0 TDI 190HP Stronic Size, Dimensions, Aerodynamics and Weight

Wheelbase :	282.0 cm / 111.02 inches

Length :	472.5 cm / 186.02 inches

Width :	184.2 cm / 72.52 inches

Height :	143.4 cm / 56.46 inches

Front Axle :	157.2 cm / 61.89 inches

Rear Axle :	155.5 cm / 61.22 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1605 kg / 3538 lbs

Weight/Power Output Ratio :	8.4 kg/hp


Audi A4 (B9) Avant 2.0 TDI 190HP Stronic Interior size, Dimensions

Num. of Seats :	5 seats

Seat distribution :	2+3

Trunk / Boot capacity :	505 L / 17.8 cu-ft

Trunk / Boot First Row :	1510 L / 53.3 cu-ft


Audi A4 (B9) Avant 2.0 TDI 190HP Stronic Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Discs (- mm / - inches)

Front Tyres - Rims dimensions :	225/50 R17

Rear Tyres - Rims dimensions :	225/50 R17

Front Wheels Width :	7.5"

Rear Wheels Width :	7.5"

Steering :	Rack and pinion Electric

Steering ratio :	15.9

Front Suspension :	Coil springs.

Rear Suspension :	Coil Springs.
