Make

A5 Cabriolet 2020 Versions

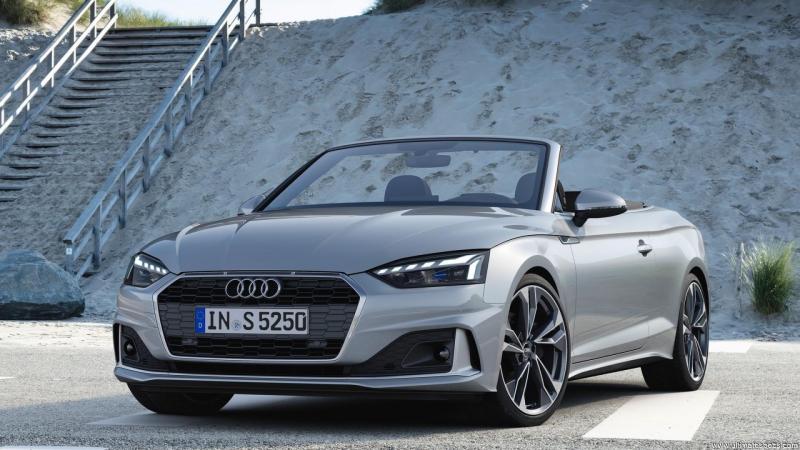

Audi A5 Cabriolet 2020 40 TDI 204HP quattro Specs

(2020 - 2023) - Technical Specifications for Years 2020, 2021, 2022, 2023

Mild Diesel

1968 cm³
120.1 cu-in

Inline 4

204 PS
201 HP / 150 kW

400 Nm
295 lb-ft

237 km/h
147 Mph

5.6 L/100 km
50 MPG UK
42 MPG US

Audi A5 Cabriolet 2020 40 TDI 204HP quattro Body, Model and Production details

Generation :	A5 Type F5 - 2020 Facelift

Body :	Cabrio

Num. of Doors :	2 doors


Audi A5 Cabriolet 2020 40 TDI 204HP quattro Engine Technical Data

Engine type - Number of cylinders :	Inline 4

Engine Code :	VW EA288evo DTP

Fuel type :	Mild Diesel

Fuel System :	Common Rail

Lubrication :	See oil information Audi A5 Cabriolet 2020 40 TDI 204HP quattro Oil Specifications - Engine oil All Weather: 5W30 OEM: VW 507.00 API/ACEA: ACEA C3, ACEA C4, API CK-4 Engine oil capacity (with filter): 5.5 L

Engine Alignment :	Longitudinal

Engine Position :	Front

Engine displacement :	1968 cm³ / 120.1 cu-in

Bore x Stroke :	81 x 95.5 mm 3.19 x 3.76 inches

Number of valves :	16 Valves

Aspiration :	Turbo Intercooler

Compression Ratio :	15.5

Horsepower :	204 PS / 201 HP / 150 kW @ 3800-4200 rpm

Maximum torque :	400 Nm / 295 lb-ft @ 1750-3250 rpm

Drive wheels - Traction - Drivetrain :	AWD

Transmission Gearbox - Number of speeds :	7 speed Dualclutch Automatic


Audi A5 Cabriolet 2020 40 TDI 204HP quattro Electric Engines Technical Data

Total System Power :	204 PS / 201 HP / 150 kW

Total System Torque :	400 Nm / 295 lb-ft


Audi A5 Cabriolet 2020 40 TDI 204HP quattro Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Low WLTP:	7 L/100 km 40 MPG UK 34 MPG US

Fuel Consumption - Economy - Medium WLTP:	5.6 L/100 km 50 MPG UK 42 MPG US

Fuel Consumption - Economy - High WLTP:	4.8 L/100 km 59 MPG UK 49 MPG US

Fuel Consumption - Economy - Extra high WLTP:	5.7 L/100 km 50 MPG UK 41 MPG US

Fuel Consumption - Economy - Combined WLTP:	5.6 L/100 km 50 MPG UK 42 MPG US

Range (WLTP):	1035 km / 643 miles

Fuel Tank Capacity :	58 L 15.3 US gallons 12.8 UK gallons

AdBlue Tank :	12 L 3.2 US gallons 2.6 UK gallons

CO2 emissions WLTP :	146 g/km (Audi)

Emission standard :	Euro 6d - WLTP

Catalytic converter :	Particle Filter (with SCR cat.)

Audi A5 Cabriolet 2020 40 TDI 204HP quattro Performance

Top Speed :	237 km/h / 147 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	7.6 s


Audi A5 Cabriolet 2020 40 TDI 204HP quattro Size, Dimensions, Aerodynamics and Weight

Wheelbase :	276.4 cm / 108.82 inches

Length :	469.7 cm / 184.92 inches

Width :	184.6 cm / 72.68 inches

Width with mirrors :	202.9 cm / 79.88 inches

Height :	138.4 cm / 54.49 inches

Front Axle :	158.7 cm / 62.48 inches

Rear Axle :	156.8 cm / 61.73 inches

Max. Towing Capacity Weight :	1800 kg / 3968 lbs

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1845 kg / 4068 lbs

Weight/Power Output Ratio :	9 kg/hp


Audi A5 Cabriolet 2020 40 TDI 204HP quattro Interior size, Dimensions

Num. of Seats :	4 seats

Trunk / Boot capacity :	370 L / 13.1 cu-ft


Audi A5 Cabriolet 2020 40 TDI 204HP quattro Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (- mm / - inches)

Rear Brakes - Disc dimensions :	Discs (- mm / - inches)

Front Tyres - Rims dimensions :	225/50 R17

Rear Tyres - Rims dimensions :	225/50 R17

Turning circle :	11.5 m / 37.7 feet

Front Suspension :	Multi-link. Coil Springs. Anti-roll bar.

Rear Suspension :	Multi-link. Coil Springs. Anti-roll bar.
