Make

DB7 Volante Versions

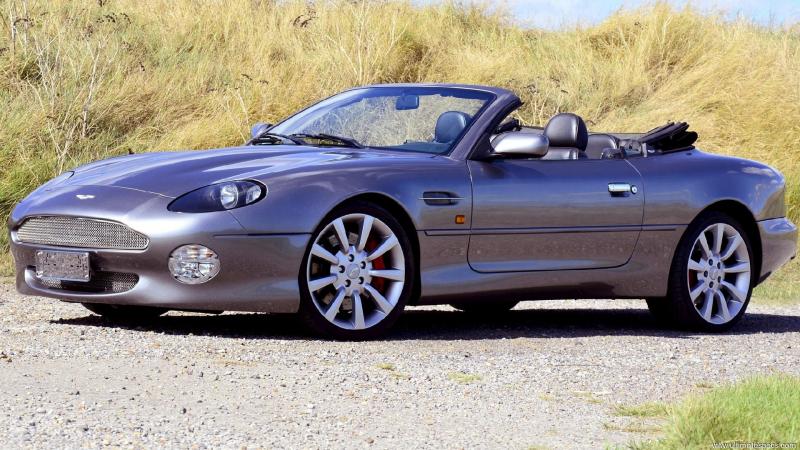

Aston Martin DB7 Volante 3.2 V8 Specs

(1996 - 2001) - Technical Specifications for Years 1996, 1997, 1998, 1999, 2000, 2001

Petrol

3228 cm³
197 cu-in

V 8

340 PS
335 HP / 250 kW

500 Nm
368 lb-ft

250 km/h
155 Mph

14.7 L/100 km
19 MPG UK
16 MPG US

Aston Martin DB7 Volante 3.2 V8 Body, Model and Production details

Body :	-

Num. of Doors :	2 doors


Aston Martin DB7 Volante 3.2 V8 Engine Technical Data

Engine type - Number of cylinders :	V 8

Engine Code :	-

Fuel type :	Petrol

Fuel System :	MPI

Engine Alignment :	Longitudinal

Engine displacement :	3228 cm³ / 197 cu-in

Bore x Stroke :	91.0 x 83.0 mm 3.58 x 3.27 inches

Number of valves :	32 Valves

Aspiration :	Compressor

Compression Ratio :	8.3

Horsepower :	340 PS / 335 HP / 250 kW @ 5600 rpm

Maximum torque :	500 Nm / 368 lb-ft @ 3000 rpm

Drive wheels - Traction - Drivetrain :	RWD

Transmission Gearbox - Number of speeds :	5 speed Manual


Aston Martin DB7 Volante 3.2 V8 Fuel Consumption (Economy), Emissions and Range

Fuel Consumption - Economy - Combined:	14.7 L/100 km 19 MPG UK 16 MPG US

Fuel Consumption - Economy - Combined NEDC :	14.7 L/100 km 19 MPG UK 16 MPG US

Range :	557 km / 346 miles

Fuel Tank Capacity :	82 L 21.7 US gallons 18 UK gallons

CO2 emissions :	351 g/km (Aston Martin)

Aston Martin DB7 Volante 3.2 V8 Performance

Top Speed :	250 km/h / 155 Mph

Acceleration 0 to 100 km/h (0 to 62 mph) :	6.0 s


Aston Martin DB7 Volante 3.2 V8 Size, Dimensions, Aerodynamics and Weight

Wheelbase :	259.0 cm / 101.97 inches

Length :	463.0 cm / 182.28 inches

Width :	182.0 cm / 71.65 inches

Height :	127.0 cm / 50 inches

Aerodynamic drag coefficient - Cx :	-

Curb Weight :	1850 kg / 4079 lbs

Weight/Power Output Ratio :	5.4 kg/hp


Aston Martin DB7 Volante 3.2 V8 Interior size, Dimensions

Num. of Seats :	4 seats

Trunk / Boot capacity :	150 L / 5.3 cu-ft


Aston Martin DB7 Volante 3.2 V8 Brakes, Tires, Steering and Suspension

Front Brakes - Disc dimensions :	Vented Discs (284 mm / 11.18 inches)

Rear Brakes - Disc dimensions :	Discs (305 mm / 12.01 inches)

Front Tyres - Rims dimensions :	245/40 R18

Rear Tyres - Rims dimensions :	245/40 R18

Front Suspension :	Independent. Double wishbone. Coil Springs. Anti-roll bar.

Rear Suspension :	Independent. Double wishbone. Anti-roll bar
