Harrier II Technical Data

(1985)

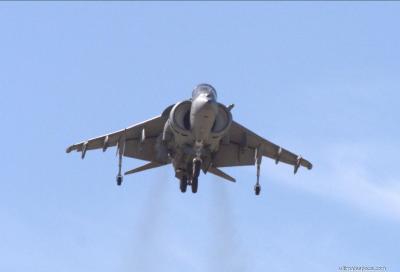

Harrier II image
© Ultimate Specs
Crew: 1.

Data for version Harrier GR.7

Armament:
Guns:
2x 25 mm ADEN cannon pods under the fuselage

Hardpoints:
8x under-wing pylon stations with a capacity of 8,000 lbs (3,650 kg) of payload

Versions:
GR.5 - 40 units built.
GR.5A - 21 units built.
GR.7
GR.7A
GR.9
GR.9A
T.10
T.12
T.12A

BAE Systems Inc Harrier II General Information

Manufacturer: BAE Systems Inc
Model: Harrier II
Main Category: Military
Category: V/STOL strike aircraft
Country: United Kingdom
ICAO Code: GR9
Production start: 1985
Production end: 1991
Status: Retired 2011
Units Produced: 143
Price (new): US$35 million

BAE Systems Inc Harrier II Flight and Avionics

Avionics: GEC-Marconi (Plessey) PVS-2000 Missile approach warning system
Winglets: No

BAE Systems Inc Harrier II Power Plant

Number of engines: 1
Engine details: Rolls-Royce Pegasus Mk.107 Turbofan Engine
Thrust: 21750 lbf (pound-force) / 97 kN (kilo Newton) / 9866 kgf (kilopond)

BAE Systems Inc Harrier II Performance

Top Speed: 575 knots / 662 mph / 1065 km/h
Cruise speed: 357 knots / 411 mph / 661 km/h

BAE Systems Inc Harrier II Range and Fuel Consumption

Ferry Range: 1758 nautical miles / 2023 miles / 3256 kilometers
Combat Radius: 300 miles / 483 kilometers
Climb rate: 14715 feet / 4485.13 meters
Ceiling: 50000 feet / 15240 meters

BAE Systems Inc Harrier II Exterior Dimensions

Exterior length: 14.12 meters / 46 feet 3.91 inches
Tail height: 3.56 meters / 11 feet 8.16 inches
Track: 5.18 meters / 16 feet 11.94 inches
Wing span: 9.25 meters / 30 feet 4.17 inches

BAE Systems Inc Harrier II Interior Dimensions

Passenger Capacity: 1

BAE Systems Inc Harrier II Weights and Distances

Maximum takeoff weight: 30999 lbs / 14061 kg
Maximum payload: 8047 lbs / 3650 kg
